Product CatalogPart Number
CP3504P1V00-NH
Manufacturer
Cvilux USADescription
4 POS 3.00MM(.118) DUAL ROWS VER
Datasheet
DatasheetPackage
-
In Stock
77,661 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CP3504P1V00-NH
CP3504P1V00-NH
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 4 position
Quick Inquiry
CP3504P1V00-NH
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Cvilux USA |
| Series | CP35 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 7A |
| Voltage Rating | 600VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | CP3504P1 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

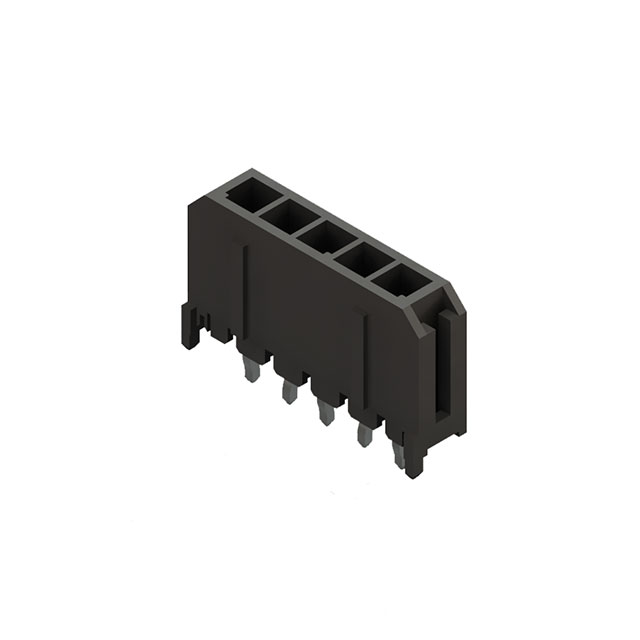

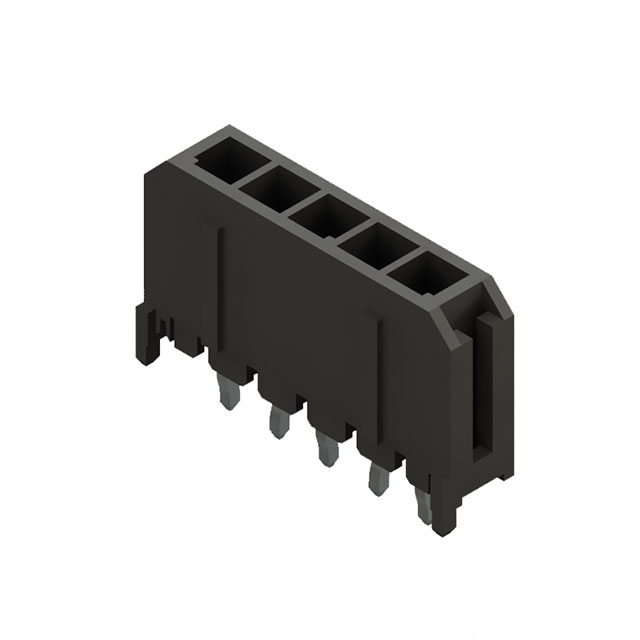

| Part Number | CP3504P1V00-S-NH | CP3502P1V00-NH | CP3502P1V00-S-NH | CP3503P1V00-S-NH |
