CPC01DFH
lmages are for reference only.CPC01DFH
SENSOR 1PSID 0.16" .018V 4SIP
Datasheet4-SIP Module
58,550 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.16" (4.06mm) Tube, Dual 0 mV ~ 18 mV (12V) 4-SIP Module
CPC01DFH
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CPC |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 1PSI (6.89kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 18 mV (12V) |
| Accuracy | ±2% |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.16" (4.06mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 5PSI (34.47kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

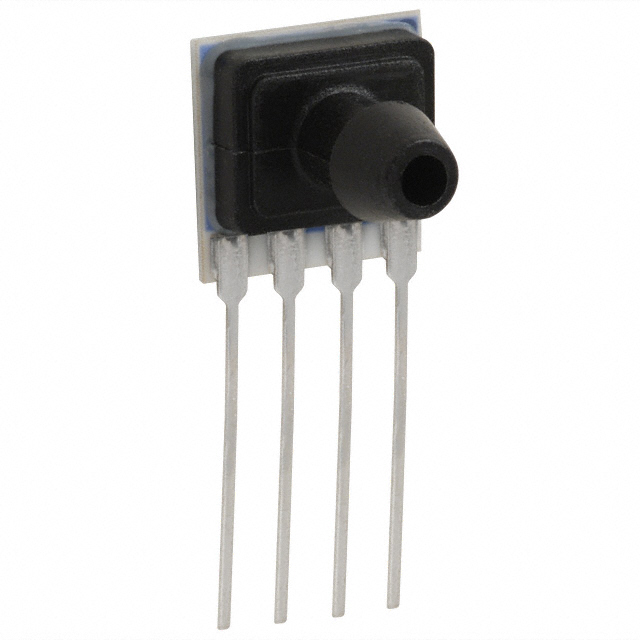

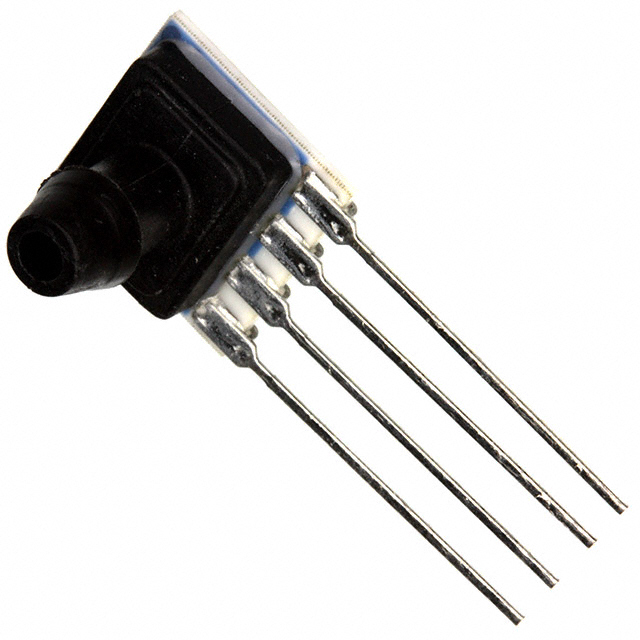

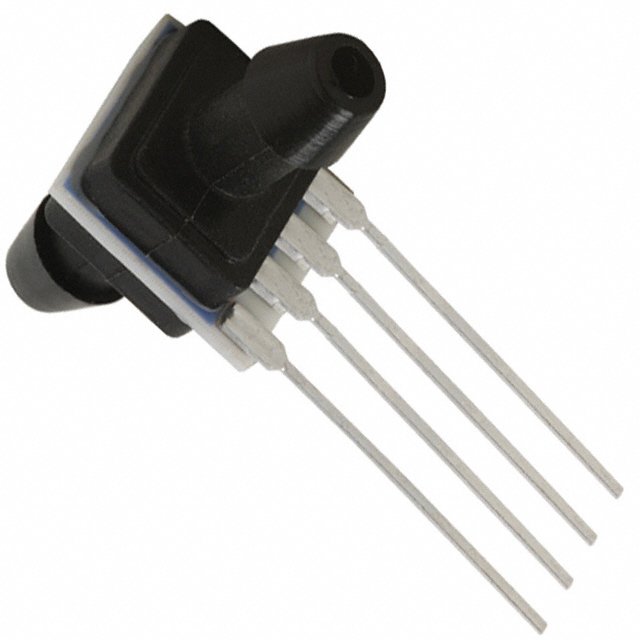

| Part Number | CPC01DFC | CPC01DFC | CPC01GFC | CPC01GFH |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSID 0.16" .018V | SENSOR 1PSID 0.16" .018V | SENSOR 1PSIG 0.15" .018V | SENSOR 1PSIG 0.15" .018V |
| Series | CPC | CPC | CPC | CPC |
| Packaging | Tube | Tube | Bulk | Tube |
