Product CatalogPart Number
CPC1002N
Manufacturer
Littelfuse Inc.Description
SSR RELAY SPST-NO 700MA 0-60V
Datasheet
DatasheetPackage
4-SOP (0.150", 3.81mm)
In Stock
84,414 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPC1002N
CPC1002N

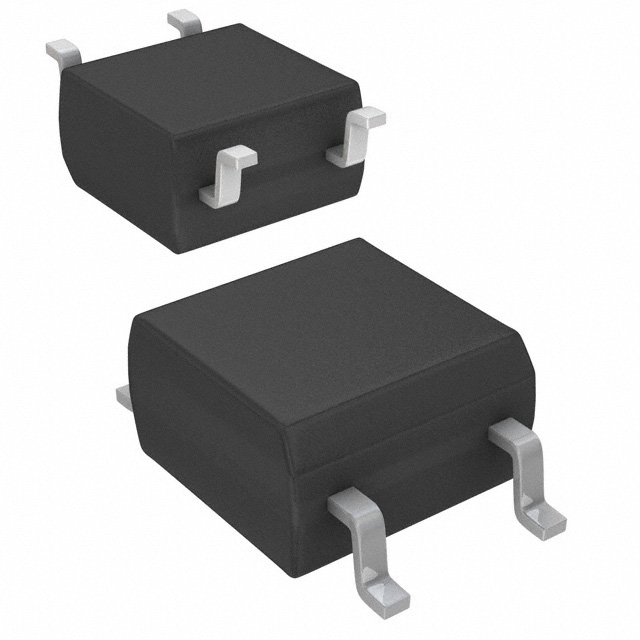

lmages are for reference only.Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-SOP (0.150", 3.81mm)
Quick Inquiry
CPC1002N
Specifications
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Littelfuse Inc. |
| Series | CPC, OptoMOS® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | DC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 700 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-SOP (0.150", 3.81mm) |
| Supplier Device Package | 4-SOP |
| Approval Agency | CSA, EN, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | CPC100 |
| On-State Resistance (Max) | 550 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CPC1002NTR | CPC1004N | CPC1004NTR | CPC1006N |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 700MA 0-60V | SSR RELAY SPST-NO 300MA 0-100V | SSR RELAY SPST-NO 300MA 0-100V | SSR RELAY SPST-NO 75MA 0-60V |
| Series | CPC, OptoMOS® | CPC, OptoMOS® | CPC, OptoMOS® | CPC, OptoMOS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
