CPC100AFH
lmages are for reference only.CPC100AFH
SENSOR 100PSIA 0.15" 0.1V
Datasheet4-SIP Module
76,382 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.15" (3.8mm) Tube 0 mV ~ 100 mV (12V) 4-SIP Module
CPC100AFH
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CPC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV (12V) |
| Accuracy | ±2% |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.15" (3.8mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | - |
| Maximum Pressure | 250PSI (1723.69kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | CPC0.3DFH | CPC0.3GFC | CPC0.3GFH | CPC01DFC |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

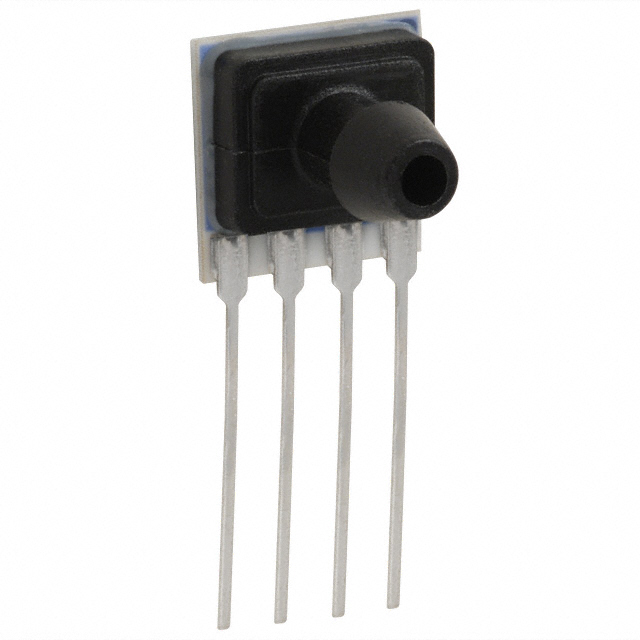

| Description | SENSOR 0.3PSID 0.16" .02V | SENSOR 0.3PSIG 0.16" .02V | SENSOR 0.3PSIG 0.15" .02V | SENSOR 1PSID 0.16" .018V |
| Series | CPC | CPC | CPC | CPC |
| Packaging | Tube | Bulk | Bulk | Tube |
