CPC1963G

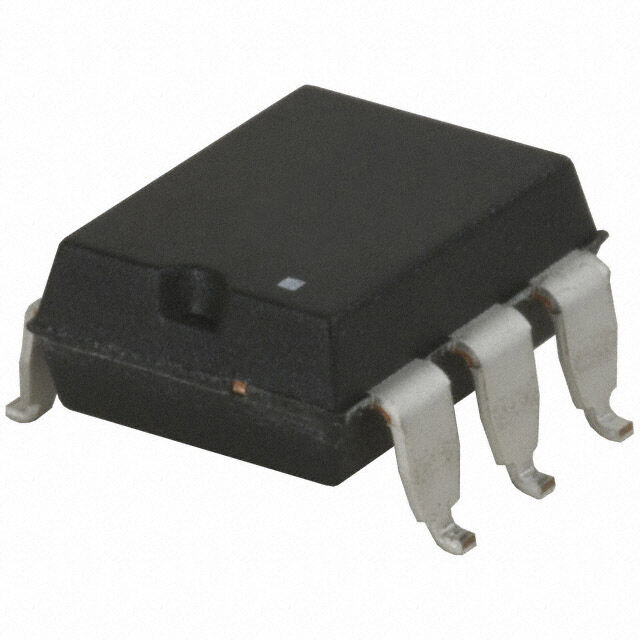

lmages are for reference only.CPC1963G
SSR RELAY SPST-NO 500MA 0-600V
Datasheet6-DIP (0.300", 7.62mm)
92,894 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
CPC1963G
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Littelfuse Inc. |
| Series | CPC |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 600 V |
| Load Current | 500 mA |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | CSA, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | CPC196 |
| On-State Resistance (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CPC1963GS | CPC1963GSTR | CPC1906Y | CPC1907B |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 500MA 0-600V | SSR RELAY SPST-NO 500MA 0-600V | SSR RELAY SPST-NO 2A 0-60V | SSR RELAY SPST-NO 6A 0-60V |
| Series | CPC | CPC | CPC, OptoMOS® | CPC, OptoMOS® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk |
