CPC1966BX8
lmages are for reference only.CPC1966BX8
SSR RELAY SPST-NO 3A 20-240V
Datasheet8-SOP (0.400", 10.16mm Width)
77,090 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 8-SOP (0.400", 10.16mm Width)
CPC1966BX8
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | IXYS Integrated Circuits Division |
| Series | CPC |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 20 V ~ 240 V |
| Load Current | 3 A |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOP (0.400", 10.16mm Width) |
| Supplier Device Package | 8-SOIC |
| Approval Agency | CSA, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | CPC196 |
| On-State Resistance (Max) | - |
| Product Attribute |  |
 |
 |
|

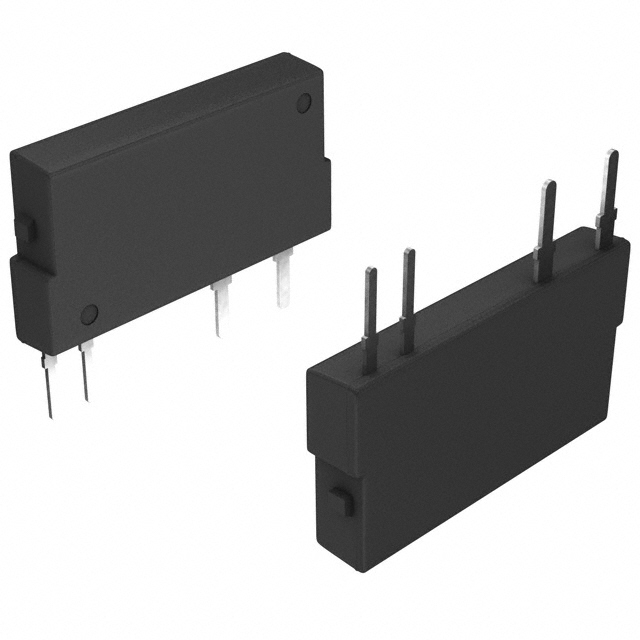

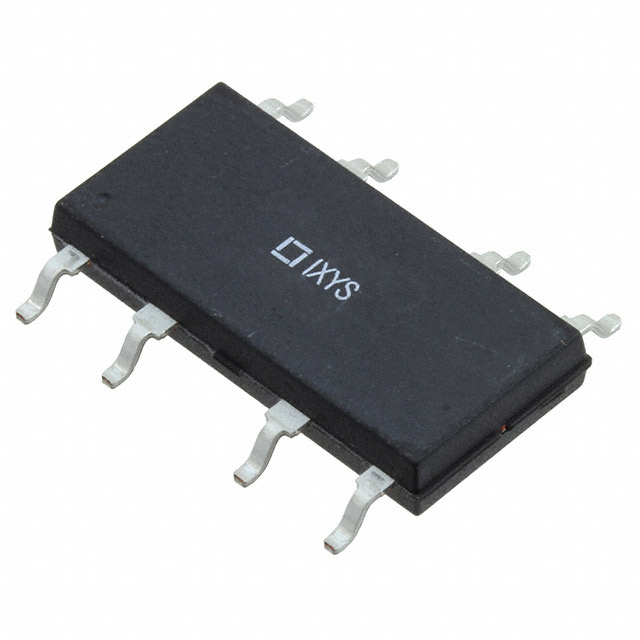

| Part Number | CPC1966B | CPC1966Y | CPC1966YX6 | CPC1966YX8 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | IXYS Integrated Circuits Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 3A 20-240V | SSR RELAY SPST-NO 3A 20-240V | SSR RELAY SPST-NO 3A 0-600V | SSR RELAY SPST-NO 3A 20-240V |
| Series | CPC | CPC | CPC | CPC |
| Packaging | Tube | Tube | Tube | Tube |
