CPD1715F-220M
Manufacturer
CODACADescription
CLASS D INDUCTOR FOR DIGITAL AMP
Datasheet
DatasheetPackage
Nonstandard
In Stock
29,667 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPD1715F-220M
CPD1715F-220M
lmages are for reference only.Payment Methods
Delivery Services

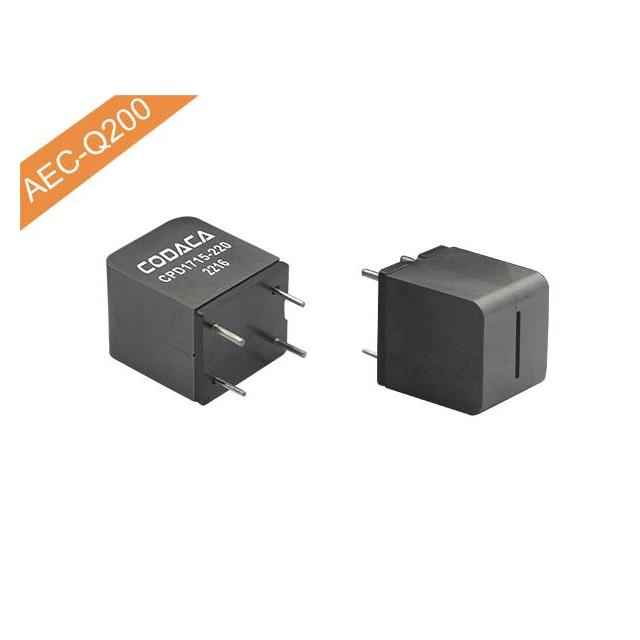

22 µH Shielded Wirewound Inductor 17 A 8.8mOhm Max Nonstandard Low Loss, Soft Saturation
Quick Inquiry
CPD1715F-220M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | CODACA |
| Series | CPD1715F |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 14.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | Low Loss, Soft Saturation |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 0.689" L x 0.591" W (17.50mm x 15.00mm) |
| Height - Seated (Max) | 0.760" (19.30mm) |
| Base Product Number | - |
