Product CatalogPart Number
CPDA10C1V8U-HF
Manufacturer
Comchip TechnologyDescription
DIODE ESD 24VWM 105W DFN2510-10
Datasheet
DatasheetPackage
10-XFDFN
In Stock
53,354 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPDA10C1V8U-HF
CPDA10C1V8U-HF

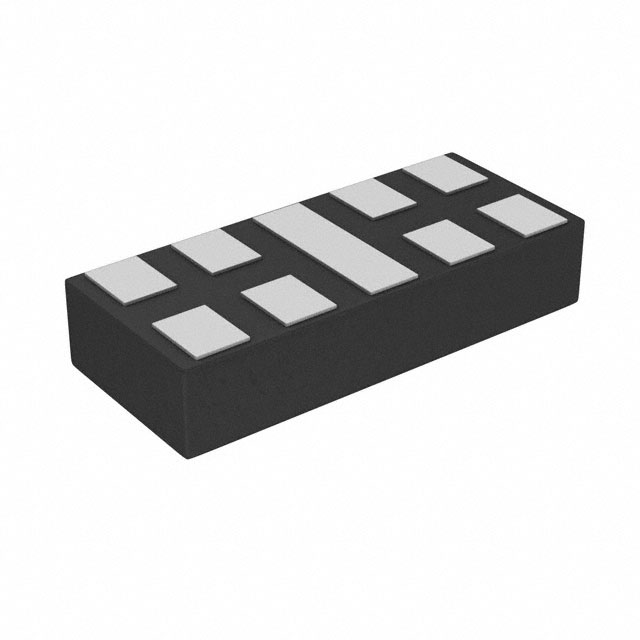

lmages are for reference only.Payment Methods
Delivery Services
9V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10
Quick Inquiry
CPDA10C1V8U-HF
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 1.8V (Max) |
| Voltage - Breakdown (Min) | 2.6V |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 45W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFDFN |
| Supplier Device Package | DFN2510-10 |
| Base Product Number | - |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | CPDA10C1V5U-HF | CPDA10C2V5U-HF | CPDA10C60VB-HF | CPDA10R3V3U-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ESD 1.5VWM 45W DFN2510-10 | DIODE ESD 2.5VWM 50W DFN2510-10 | DIODE ESD ARRAY 60VWM 198W DFN25 | TVS DIODE 3.3VWM 9.8VC |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
