CPDER5V0C-HF

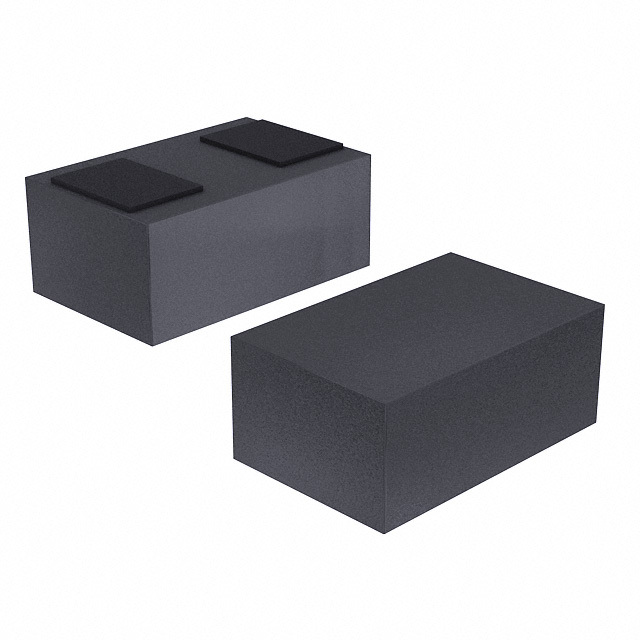

lmages are for reference only.CPDER5V0C-HF
TVS DIODE 5VWM 0503/SOD723F
Datasheet0503 (1308 Metric)
97,121 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount 0503/SOD-723F
CPDER5V0C-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.1V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 0503 (1308 Metric) |
| Supplier Device Package | 0503/SOD-723F |
| Base Product Number | CPDER5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | CPDER5V0 | CPDER5V0-HF | CPDER5V0H-HF | CPDER5V0U |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 15VC 0503/SOD723F | TVS DIODE 5VWM 15VC 0503/SOD723F | TVS DIODE 5VWM 20VC 0503/SOD723F | TVS DIODE 5VWM 12.5VC 0503 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
