CPDQC5V0HE-HF

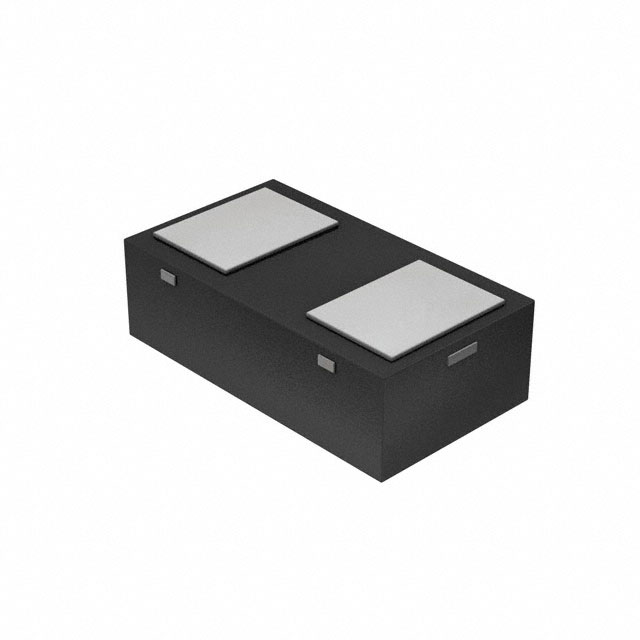

lmages are for reference only.CPDQC5V0HE-HF
TVS DIODE 5VWM 16VC 0402/SOD923F
Datasheet0402 (1006 Metric)
95,648 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
CPDQC5V0HE-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 16V |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power - Peak Pulse | 128W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 15pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 0402C/SOD-923F |
| Base Product Number | CPDQC5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

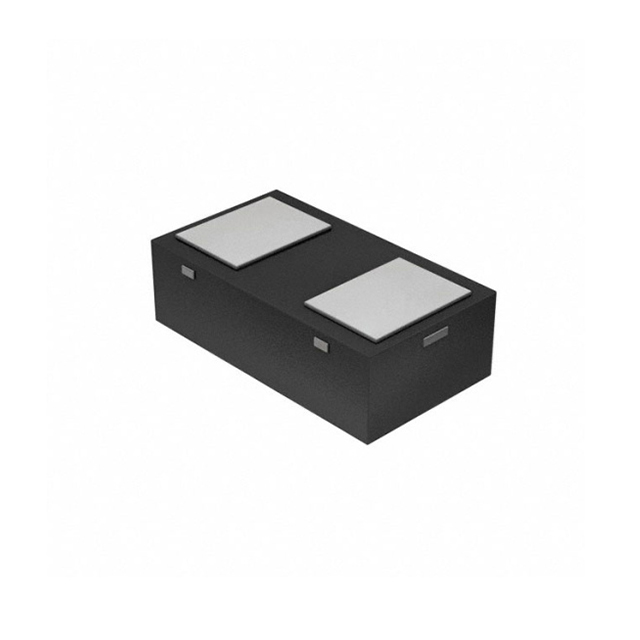

| Part Number | CPDQC5V0-HF | CPDQC5V0A-HF | CPDQC5V0AU-HF | CPDQC5V0BHT-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 15V 0402C/SOD923F | TVS DIODE 5VWM 25V 0402C/SOD923F | TVS DIODE 5VWM 15V 0402C/SOD923F | DIODE ESD 5VWM 600W 0402C/SOD-92 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
