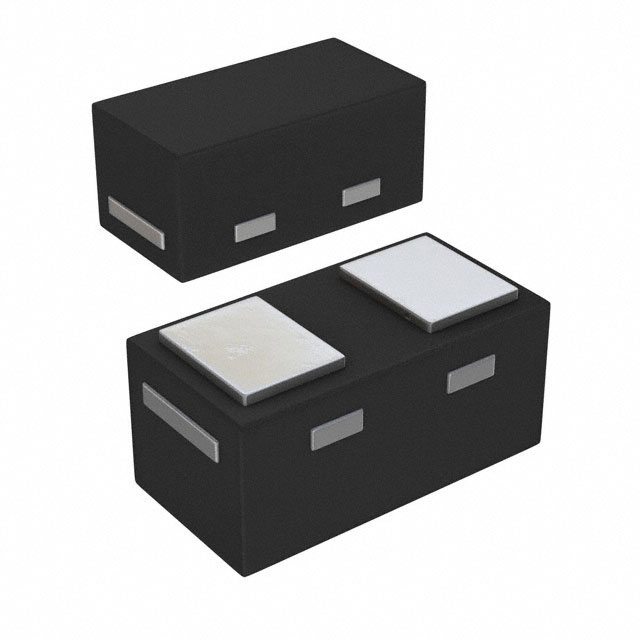

CPDZC5V0C-HF
lmages are for reference only.CPDZC5V0C-HF
TVS DIODE 5VWM 15VC 0201/DFN0603
Datasheet0201 (0603 Metric)
27,072 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 0201/DFN0603
CPDZC5V0C-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power - Peak Pulse | 30W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201/DFN0603 |
| Base Product Number | CPDZC5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | CPDZC5V0B-HF | CPDZC5V0BU-HF | CPDZC5V0HA-HF | CPDZC5V0HP-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ESD 5VWM 15VC 0201/DFN0603 | DIODE ESD 5VWM 56W 0201/DFN0603 | DIODE ESD 5VWM 88W 0201/DFN0603 | DIODE ESD 5VWM 10VC 0201/DFN0603 |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
