CPEA3635L-560MC
lmages are for reference only.Payment Methods
Delivery Services

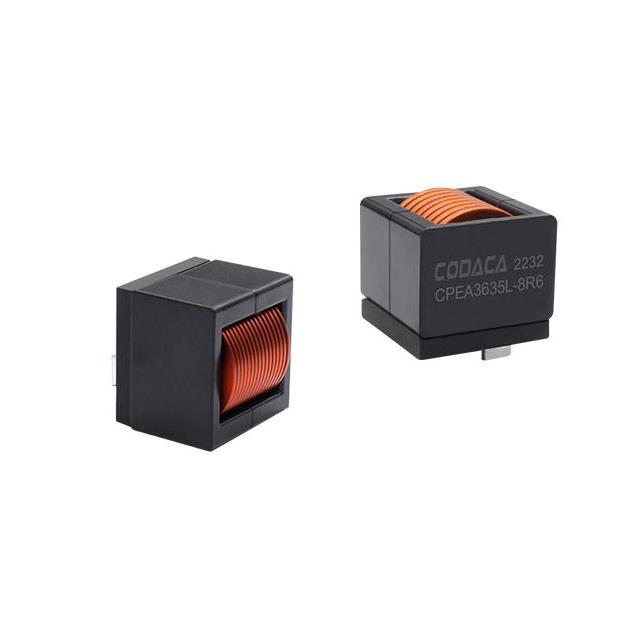

56 µH Shielded Wirewound Inductor 41 A 3.83mOhm Max Radial, Horizontal (Open) Flat Wire, High Current
CPEA3635L-560MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | CODACA |
| Series | CPEA3635L |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Metal Composite |
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 41 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.83mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | Flat Wire, High Current |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | Radial, Horizontal (Open) |
| Size / Dimension | 1.437" L x 1.405" W (36.50mm x 35.69mm) |
| Height - Seated (Max) | 1.346" (34.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CPEA3635L-110MC | CPEA3635L-111MC | CPEA3635L-111MC | CPEA3635L-160MC |
| Manufacturer | CODACA | CODACA | CODACA | CODACA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THT HIGH CURRENT POWER INDUCTOR | THT HIGH CURRENT POWER INDUCTOR | THT HIGH CURRENT POWER INDUCTOR | THT HIGH CURRENT POWER INDUCTOR |
| Series | CODACA | CODACA | CODACA | CODACA |
| Packaging | Tray | Tray | Tray | Tray |
