CPFBZ-A2C5-32.768KD6

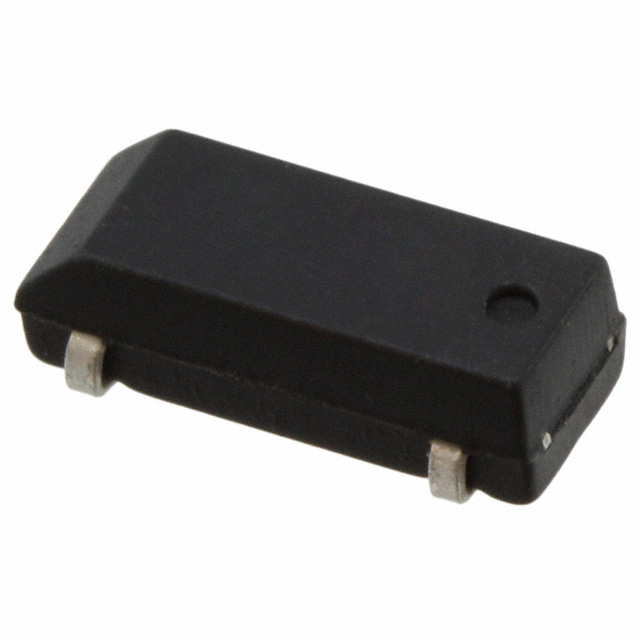

lmages are for reference only.CPFBZ-A2C5-32.768KD6
CRYSTAL 32.7680KHZ 6PF SMD
Datasheet4-SOJ, 5.50mm pitch
59,578 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32.768 kHz ±20ppm Crystal 6pF 50 kOhms 4-SOJ, 5.50mm pitch
CPFBZ-A2C5-32.768KD6
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Cardinal Components Inc. |
| Series | CPFB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 5.50mm pitch |
| Size / Dimension | 0.343" L x 0.146" W (8.70mm x 3.70mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | CPFBZ-A2C5-32.768KD12.5 | CPFBZ-A2C5-32.768KD12.5 | CPFBZ-A2C5-32.768KD6 | CPFBZ-A2C5-32.768D6 |
| Manufacturer | Cardinal Components Inc. | Cardinal Components Inc. | Cardinal Components Inc. | Cardinal Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 32.7680KHZ 12.5PF SMD | CRYSTAL 32.7680KHZ 12.5PF SMD | CRYSTAL 32.7680KHZ 6PF SMD | CRYSTAL 32.7680KHZ 6PF SMD |
| Series | Cardinal Components Inc. | Cardinal Components Inc. | Cardinal Components Inc. | Cardinal Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
