CPPX1-A5BC-XX.XXXNP
lmages are for reference only.CPPX1-A5BC-XX.XXXNP
OSC PROG BLANK 500KHZ-133MHZ
Datasheet14-DIP, 4 Leads (Full Size, Metal Can)
93,721 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XO (Standard) CMOS, TTL 500 kHz ~ 133 MHz Programmable Oscillator 3V ~ 5.5V Enable/Disable, Standby 14-DIP, 4 Leads (Full Size, Metal Can)
CPPX1-A5BC-XX.XXXNP
| Category | Crystals, Oscillators, Resonators - Programmable Oscillators - |
| Manufacturer | Cardinal Components Inc. |
| Series | FIPO™ CPP |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Available Frequency Range | 500 kHz ~ 133 MHz |
| Function | Enable/Disable, Standby |
| Output | CMOS, TTL |
| Voltage - Supply | 3V ~ 5.5V |
| Frequency Stability | ±25ppm |
| Frequency Stability (Total) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 45mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension | 0.819" L x 0.520" W (20.80mm x 13.20mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

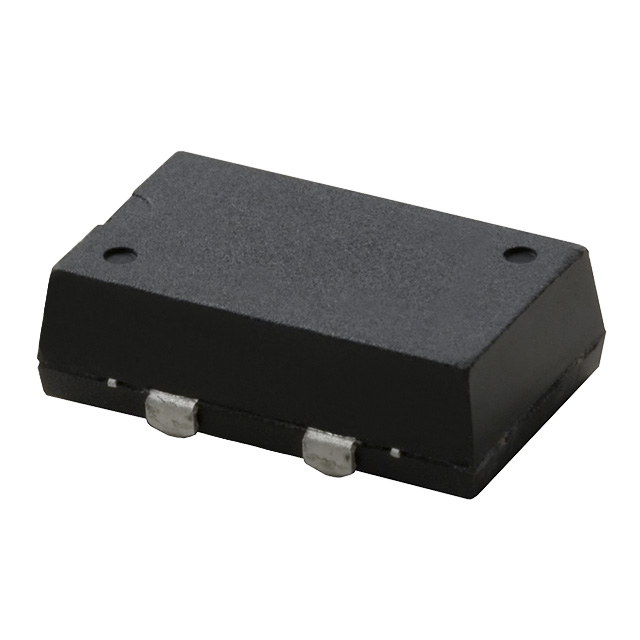

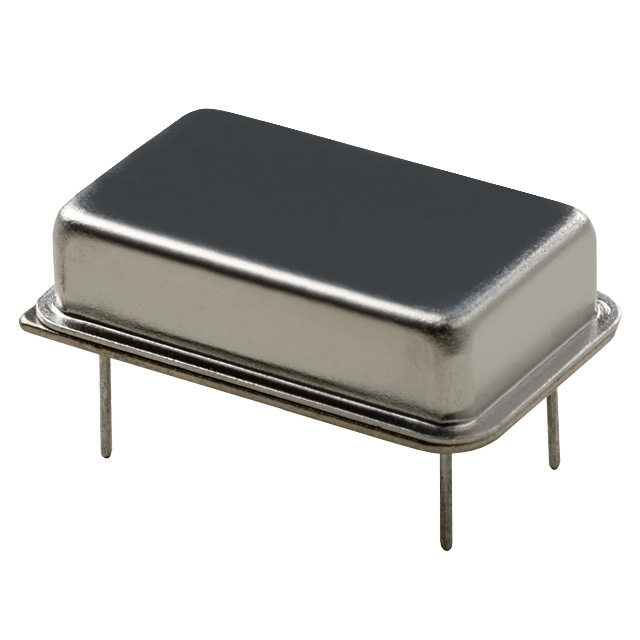

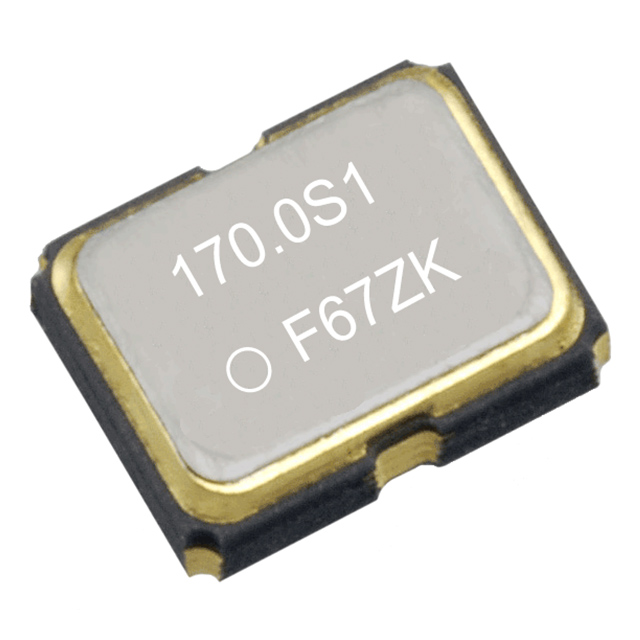

| Part Number | CPPX1-A7BR | CPPX8-A5BC | CPPX8-A7BR | SG-9101CE-C05PGBCA |
| Manufacturer | Cardinal Components Inc. | Cardinal Components Inc. | Cardinal Components Inc. | EPSON |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OSC PROG BLANK 500KHZ-133MHZ | XTAL OSC PRG BLANK 500KHZ-133MHZ | XTAL OSC PRG BLANK 500KHZ-133MHZ | XTAL OSC PROG XO CMOS CTR SPRD |
| Series | FIPO™ CPP | FIPO™ CPP | FIPO™ CPP | SG-9101 |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
