BOM
Cart
Product CatalogPart Number
CPS-5248-105PM
Manufacturer
Same SkyDescription
BUZZER PIEZO 12V 53.00MM FLANGE
Datasheet
DatasheetPackage
-
In Stock
62,554 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPS-5248-105PM
CPS-5248-105PM
lmages are for reference only.Payment Methods
Delivery Services
Buzzers Indicator, Internally Driven Piezo 12 V 280mA 3.5kHz 98dB @ 12V, 100cm Panel Mount, Flange Wire Leads
Quick Inquiry
CPS-5248-105PM
Specifications
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | Same Sky |
| Series | CPS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 15V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Warble |
| Duration | - |
| Sound Pressure Level (SPL) | 98dB @ 12V, 100cm |
| Current - Supply | 280mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.087" Dia (53.00mm) |
| Height - Seated (Max) | 1.665" (42.30mm) |
| Base Product Number | CPS-5248 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

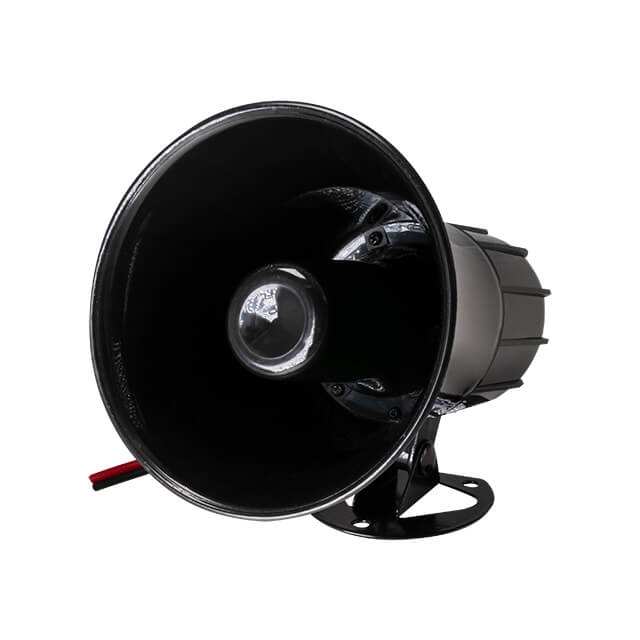

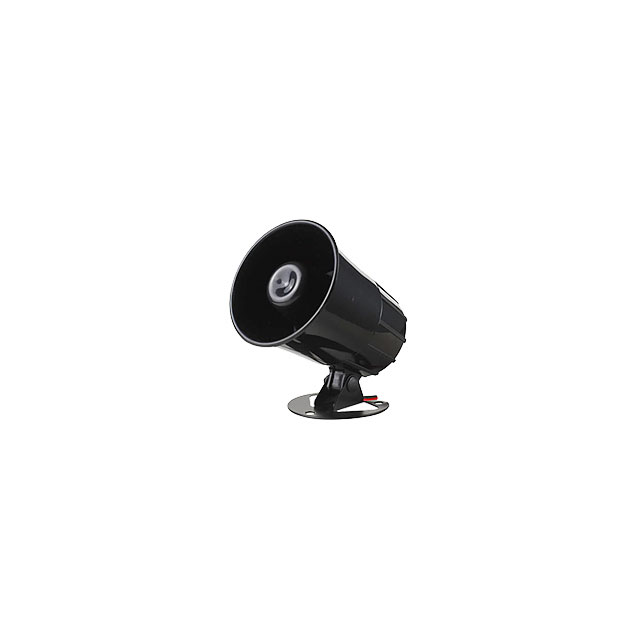

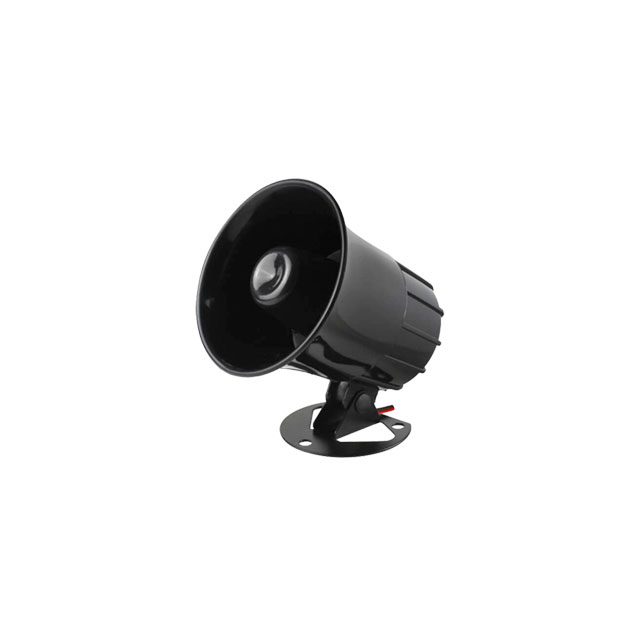

| Part Number | CPS-105100-110SPM | CPS-105110-108SPM | CPS-133150-1125PM | CPS-133150-6125PM |
| Manufacturer | Same Sky | Same Sky | Same Sky | Same Sky |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | BUZZER PIEZO 12V 88.00MM BRACKET | BUZZER PIEZO 12V 100MM BRACKET | BUZZER 12V 5.12X 5.79BLACK | BUZZER 12V 5.12X 5.79BLACK |
| Series | CPS | CPS | CPS | CPS |
| Packaging | Box | Box | Box | Box |
