CPZ1062M-TL

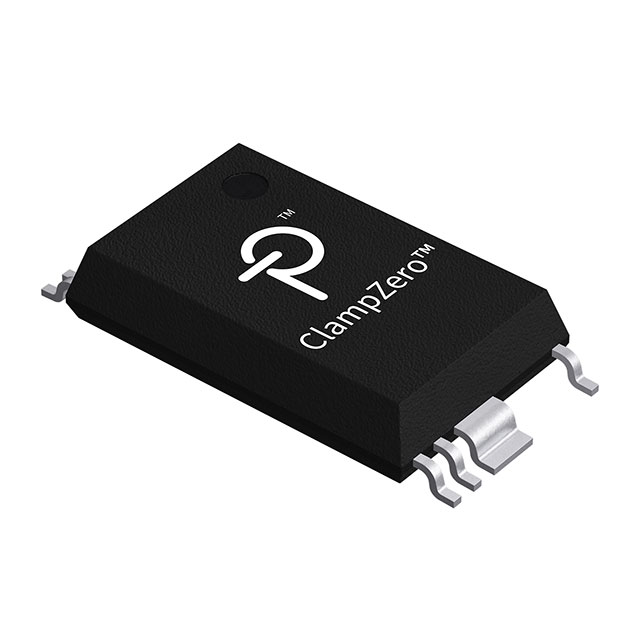

lmages are for reference only.CPZ1062M-TL
IC OFFLINE SWITCH FLYBACK MINSOP
Datasheet16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads
52,092 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology MinSOP-16A
CPZ1062M-TL
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | ClampZero™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | 135 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads |
| Supplier Device Package | MinSOP-16A |
| Mounting Type | Surface Mount |
| Base Product Number | CPZ1062 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CPZ1061M-TL | CPZ1075M-TL | CPZ1076M-TL | CS3843BGN8 |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Motorola |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC OFFLINE SWITCH FLYBACK MINSOP | 145 W (WITH INNO4) | 220 W (WITH INNO4) | CURRENT MODE PWM CONTROLLER 1A |
| Series | ClampZero™ | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
