Part Number
CQB75-300S12
Manufacturer
Cincon Electronics Co. LTDDescription
DCDC CONVERTER
Datasheet
Datasheet
Package
Quarter Brick
In Stock
88,319 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CQB75-300S12

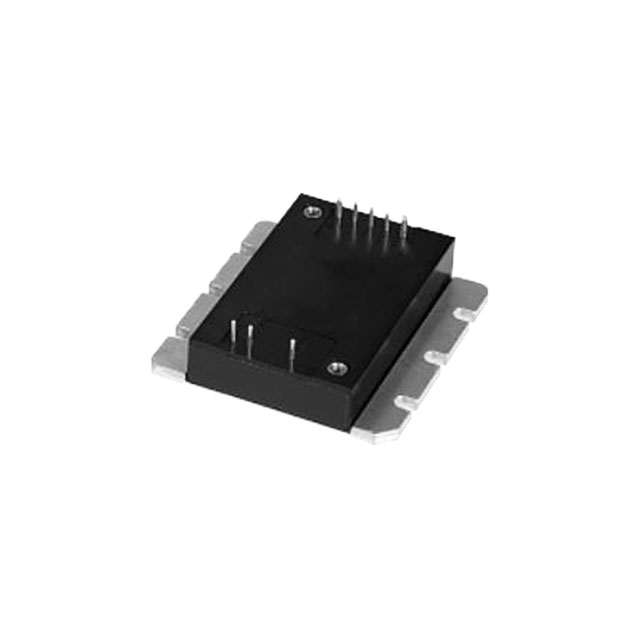

lmages are for reference only.CQB75-300S12
DCDC CONVERTER
Quarter Brick
88,319 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 6.25A 180V - 450V Input
CQB75-300S12
Category | Power Supplies - Board Mount - DC DC Converters - |
Manufacturer | Cincon Electronics Co. LTD |
Series | CQB75-300S (75W) |
Packaging | Box |
RoHS Status | ROHS3 Compliant |
Type | Isolated Module |
Number of Outputs | 1 |
Voltage - Input (Min) | 180V |
Voltage - Input (Max) | 450V |
Voltage - Output 1 | 12V |
Voltage - Output 2 | - |
Voltage - Output 3 | - |
Voltage - Output 4 | - |
Current - Output (Max) | 6.25A |
Power (Watts) | 75 W |
Applications | ITE (Commercial) |
Features | Remote On/Off, Remote Sense |
Operating Temperature | -40°C ~ 105°C (With Derating) |
Efficiency | 88% |
Grade | - |
Qualification | - |
Mounting Type | Through Hole |
Package / Case | Quarter Brick |
Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
Supplier Device Package | Quarter Brick |
Control Features | Enable, Active High |
Approval Agency | CE |
Standard Number | 62368-1 |
Base Product Number | CQB75 |
Voltage - Isolation | 3 kV |
Product Attribute | ![]() |
![]() |
![]() |
![]() |
Part Number | CQB75-300S12-C | CQB75-300S12-F | CQB75-300S12N | CQB75-300S12N-C |
Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
Description | HIGH INPUT BRICK DC-DC I/P:180-4 | DC/DC CONVERTER | DCDC CONVERTER | HIGH INPUT BRICK DC-DC I/P:180-4 |
Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
Packaging | Box | Box | Box | Box |
