CQB75W8-36S15-CMFD

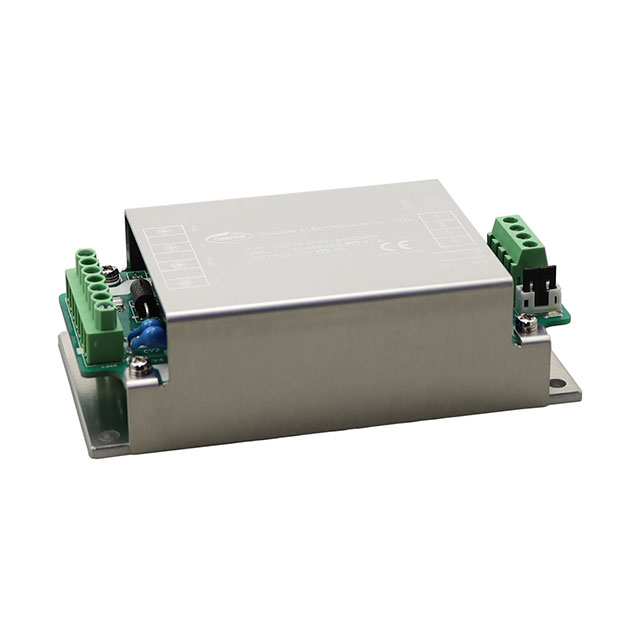

lmages are for reference only.CQB75W8-36S15-CMFD
RAILWAY BRICK DC-DC CQB75W8-36S1
Datasheet-
56,333 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 15V 5A 75V Input
CQB75W8-36S15-CMFD
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CQB75W8 (75W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 9.5V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 75W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.49" W x 1.46" H (116.8mm x 63.4mm x 37.0mm) |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | CQB75W8-36S15-CMFC | CQB75W8-36S12-CMFC | CQB75W8-36S12-CMFD | CQB75W8-36S12N-CMFC |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RAILWAY BRICK DC-DC CQB75W8-36S1 | RAILWAY BRICK DC-DC CQB75W8-36S1 | RAILWAY BRICK DC-DC CQB75W8-36S1 | RAILWAY BRICK DC-DC CQB75W8-36S1 |
| Series | CQB75W8 (75W) | CQB75W8 (75W) | CQB75W8 (75W) | CQB75W8 (75W) |
| Packaging | Box | Box | Box | Box |
