CR0402-FX-4223GPF
lmages are for reference only.CR0402-FX-4223GPF
RES 0402 422K 1% 63MW TC100 LOW
Datasheet0402 (1005 Metric)
69,329 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
422 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
CR0402-FX-4223GPF
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Bourns Inc. |
| Series | CR0402 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 422 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.015" (0.37mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

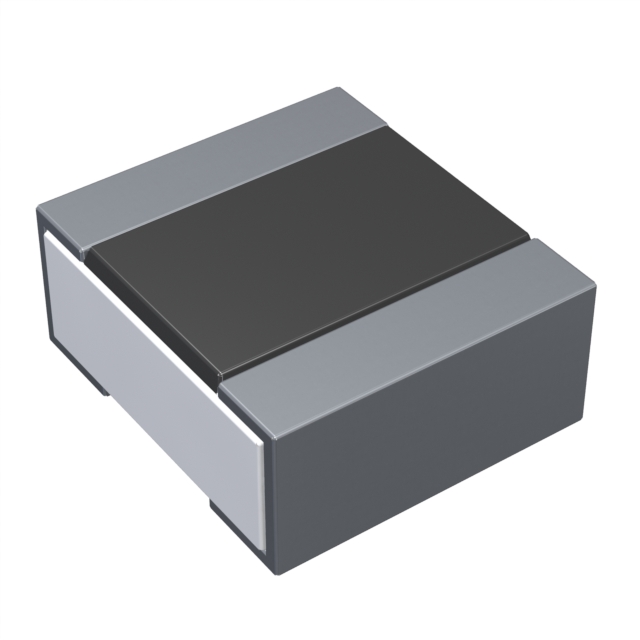

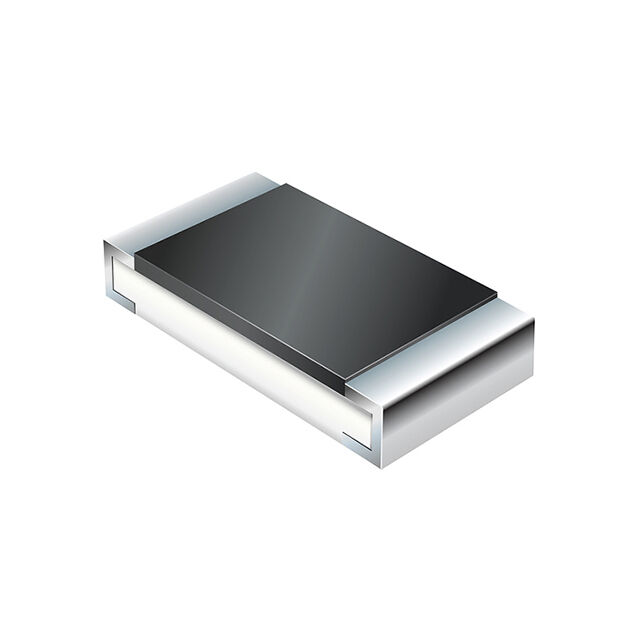

| Part Number | CR0402-FX-4223GLF | CR0402-FX-4020GLF | CR0402-FX-4021GLF | CR0402-FX-4021GPF |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RES SMD 422K OHM 1% 1/16W 0402 | RES SMD 402 OHM 1% 1/16W 0402 | RES SMD 4.02K OHM 1% 1/16W 0402 | RES 0402 4K02 1% 63MW TC100 LOW |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
