Product CatalogPart Number
CR22-68D-2.54DS(70)
Manufacturer
Hirose Electric Co LtdDescription
CONN EDGE DUAL FMALE 68POS 0.100
Datasheet
DatasheetPackage
-
In Stock
59,240 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CR22-68D-2.54DS(70)
.jpg "CR22-68D-2.54DS(70)")
CR22-68D-2.54DS(70)
lmages are for reference only.Payment Methods
Delivery Services
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Quick Inquiry
CR22-68D-2.54DS(70)
Specifications
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | Hirose Electric Co Ltd |
| Series | |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Series | CR22 |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | - |
| Number of Positions | 68 |
| Card Thickness | 0.063" (1.60mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Read Out | Dual |
| Features | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Contact Type | - |
| Color | Black |
| Flange Feature | Top Mount Opening, Unthreaded, 0.128" (3.30mm) Dia |
| Operating Temperature | -30°C ~ 85°C |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Base Product Number | CR22 |
| Termination Rows | - |
Parts with Similar Specifications

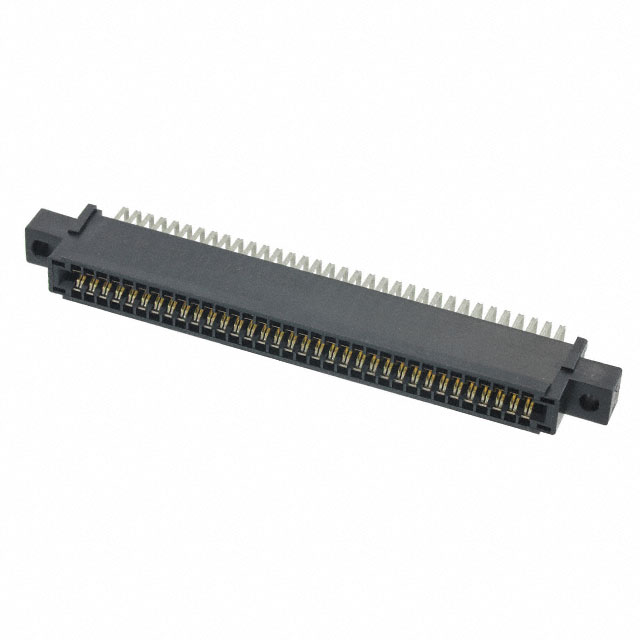

| Product Attribute | .jpg "CR22-68D-2.54DSA(70)") |
 |

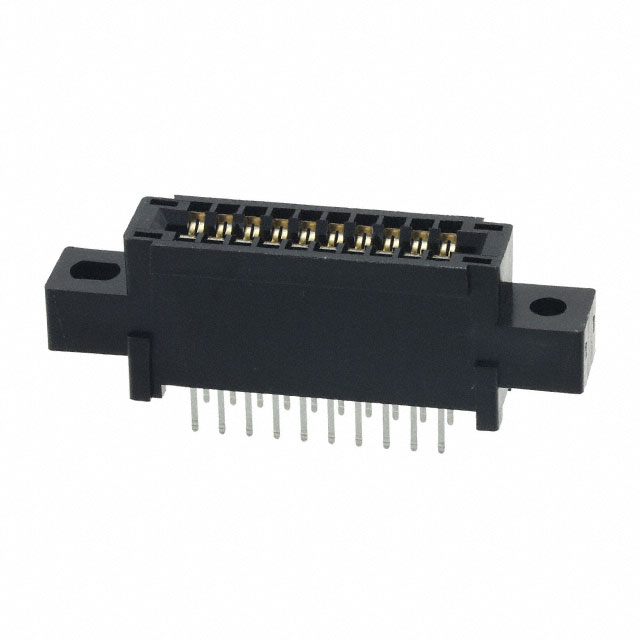

.jpg "CR22-20D-2.54DS(70)") |

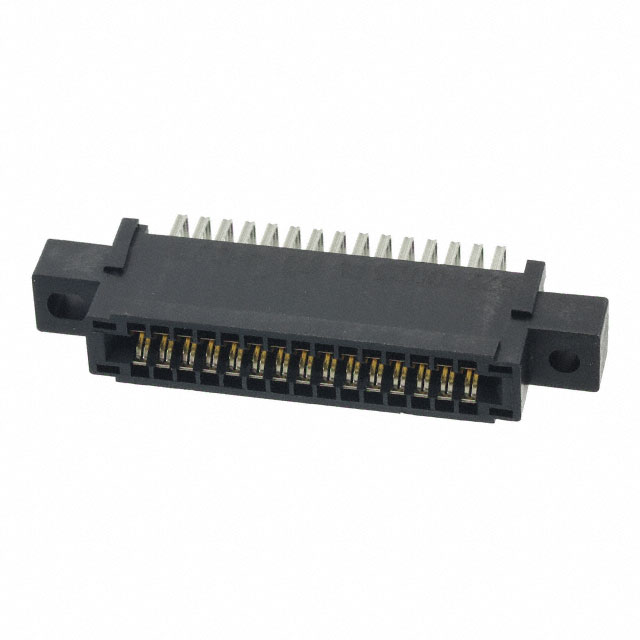

.jpg "CR22-30D-2.54DSA(70)") |
| Part Number | CR22-68D-2.54DSA(70) | CR22-100D-2.54DS(70) | CR22-20D-2.54DS(70) | CR22-30D-2.54DSA(70) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CONN EDGE DUAL FMALE 68POS 0.100 | CONN EDGE DUAL FML 100POS 0.100 | CONN EDGE DUAL FMALE 20POS 0.100 | CONN EDGE DUAL FMALE 30POS 0.100 |
| Series | CR22 | CR22 | ||
| Packaging | Tray | Tray |
Customers Also Interested in
Recommended Products
CR22-100D-2.54DS(70)
Hirose Electric Co Ltd
CR22-20D-2.54DS(70)
Hirose Electric Co Ltd
CR22-30D-2.54DSA(70)
Hirose Electric Co Ltd

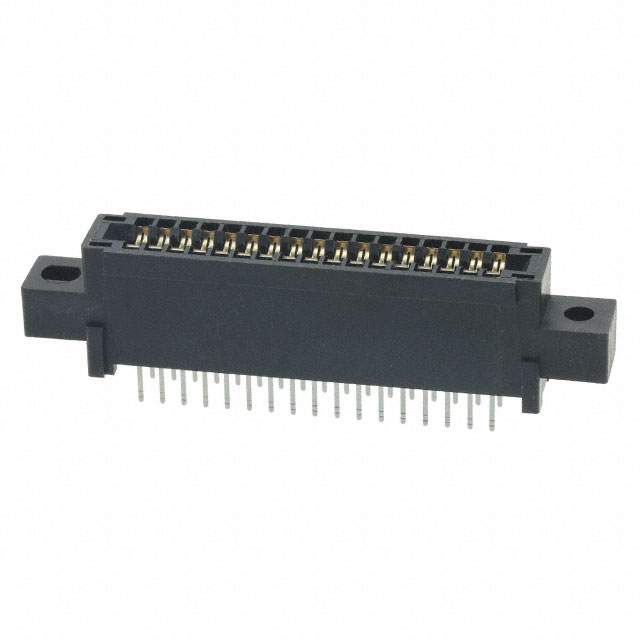

.jpg "CR22-34D-2.54DS(70)")
CR22-34D-2.54DS(70)
Hirose Electric Co Ltd

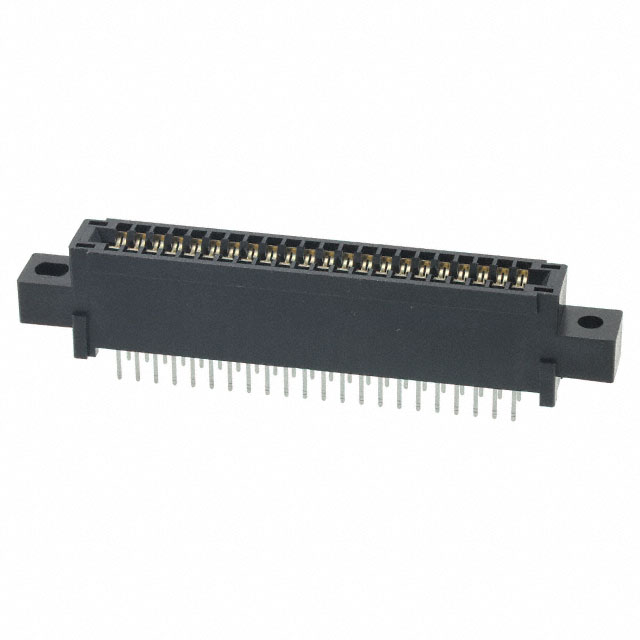

.jpg "CR22-44D-2.54DS(70)")
CR22-44D-2.54DS(70)
Hirose Electric Co Ltd
CR22-50D-2.54DSA(70)
Hirose Electric Co Ltd
CR22-60D-2.54DSA(70)
Hirose Electric Co Ltd
CR22-68D-2.54DSA(70)
Hirose Electric Co Ltd

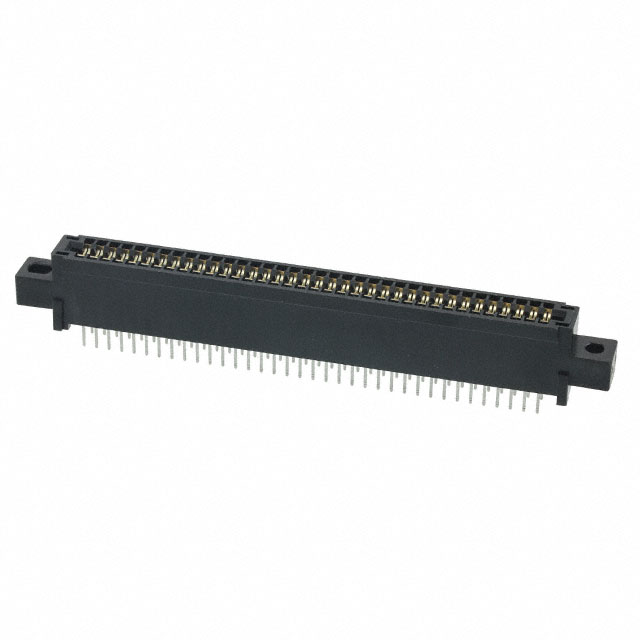

.jpg "CR22-72D-2.54DS(70)")
