CR4170-30
lmages are for reference only.CR4170-30
SENSOR CURRENT XFMR 30A AC
DatasheetModule, Triple Pass Through
101,731 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 30A 3 Channel Transformer w/Conditioning Bidirectional Module, Triple Pass Through
CR4170-30
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | CR Magnetics Inc. |
| Series | CR4100 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC |
| Sensor Type | Transformer w/Conditioning |
| Current - Sensing | 30A |
| Number of Channels | 3 |
| Output | Ratiometric, 0 V ~ 5 V |
| Sensitivity | - |
| Frequency | 20Hz ~ 5kHz |
| Linearity | - |
| Accuracy | ±0.5% |
| Voltage - Supply | 24V |
| Response Time | 250ms |
| Current - Supply (Max) | 60mA |
| Operating Temperature | 0°C ~ 60°C |
| Polarization | Bidirectional |
| Mounting Type | DIN Rail, Panel |
| Package / Case | Module, Triple Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

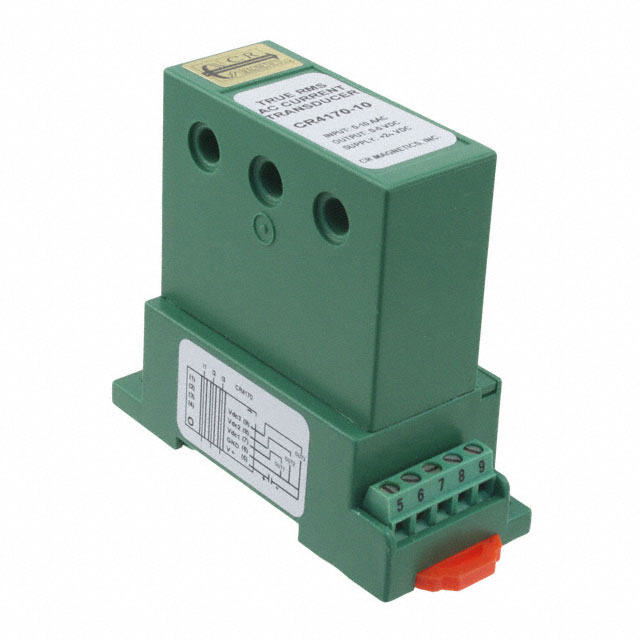

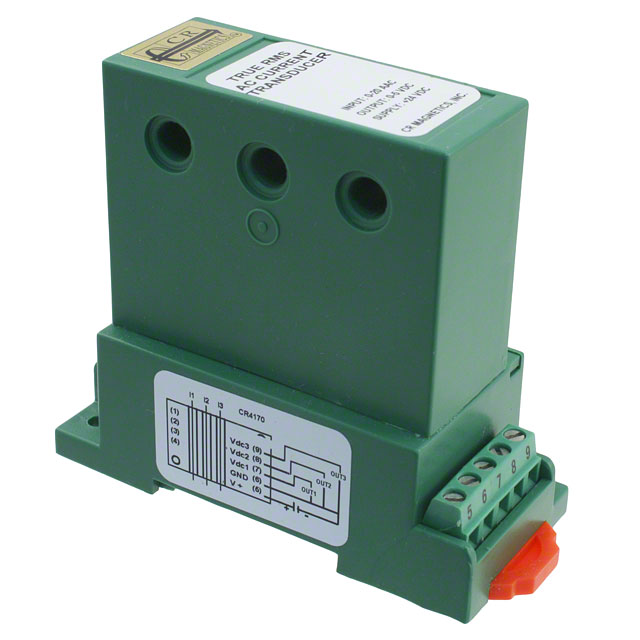

| Part Number | CR4170-0.5 | CR4170-10 | CR4170-15 | CR4170-20 |
| Manufacturer | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT XFMR 0.5A AC | SENSOR CURRENT XFMR 10A AC | SENSOR CURRENT XFMR 15A AC | SENSOR CURRENT XFMR 20A AC |
| Series | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
