CR9380-PNP

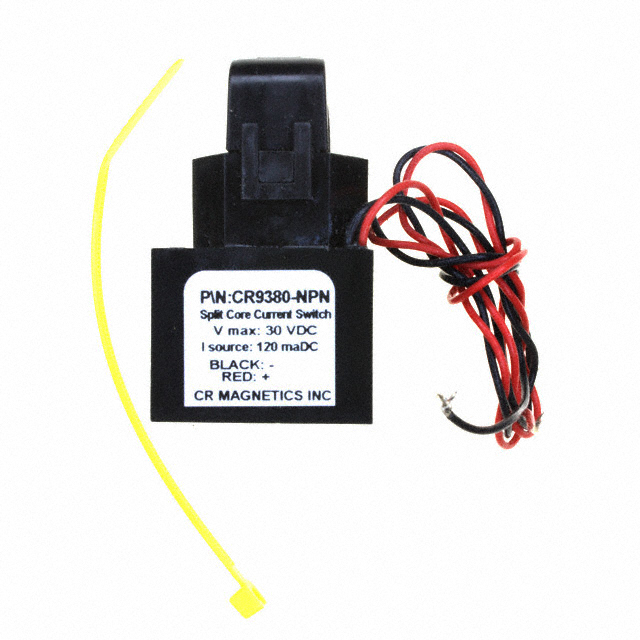

lmages are for reference only.CR9380-PNP
SENSOR CURRENT SWITCH 100A PNP
DatasheetModule, Single Pass Through
47,789 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Current Switch Bidirectional Module, Single Pass Through
CR9380-PNP
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | CR Magnetics Inc. |
| Series | CR9380 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC |
| Sensor Type | Current Switch |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | PNP |
| Sensitivity | - |
| Frequency | 50Hz ~ 400Hz |
| Linearity | - |
| Accuracy | - |
| Voltage - Supply | Self Powered |
| Response Time | 100ms (On), 250ms (Off) |
| Current - Supply (Max) | - |
| Operating Temperature | -30°C ~ 60°C |
| Polarization | Bidirectional |
| Mounting Type | - |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | CR9380-ACA | CR9380-NPN | CR9380-PNP-M | CR9321-ACA |
| Manufacturer | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT SWITCH 100A SCR | SENSOR CURRENT SWITCH 100A NPN | SENSOR CURRENT SWITCH 100A AC | SENSOR CURRENT SWITCH 100A SCR |
| Series | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
