CR9580-20-M

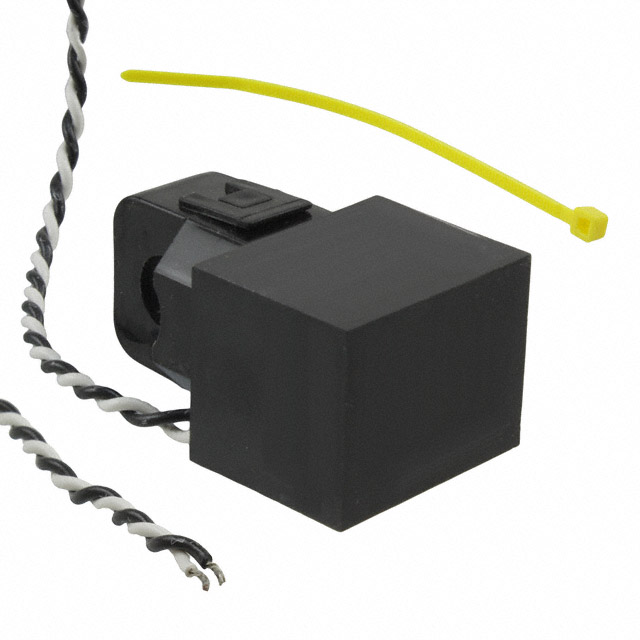

lmages are for reference only.CR9580-20-M
SENSOR CURRENT XFMR 20A AC
DatasheetHinged Ring, 0.40" Dia, Wire Leads
94,688 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 20A 1 Channel Transformer w/Conditioning Bidirectional Hinged Ring, 0.40" Dia, Wire Leads
CR9580-20-M
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | CR Magnetics Inc. |
| Series | CR9500 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC |
| Sensor Type | Transformer w/Conditioning |
| Current - Sensing | 20A |
| Number of Channels | 1 |
| Output | Ratiometric, 0 V ~ 5 V |
| Sensitivity | - |
| Frequency | 50Hz ~ 400Hz |
| Linearity | - |
| Accuracy | ±0.5% |
| Voltage - Supply | Self Powered |
| Response Time | 100ms (On), 250ms (Off) |
| Current - Supply (Max) | - |
| Operating Temperature | -30°C ~ 60°C |
| Polarization | Bidirectional |
| Mounting Type | - |
| Package / Case | Hinged Ring, 0.40" Dia, Wire Leads |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CR9580-20 | CR9580-10 | CR9580-10-M | CR9580-50 |
| Manufacturer | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT XFMR 20A AC | SENSOR CURRENT XFMR 10A AC | SENSOR CURRENT XFMR 10A AC | SENSOR CURRENT XFMR 50A AC |
| Series | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. | CR Magnetics Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
