CRBV55BE-1000-2000

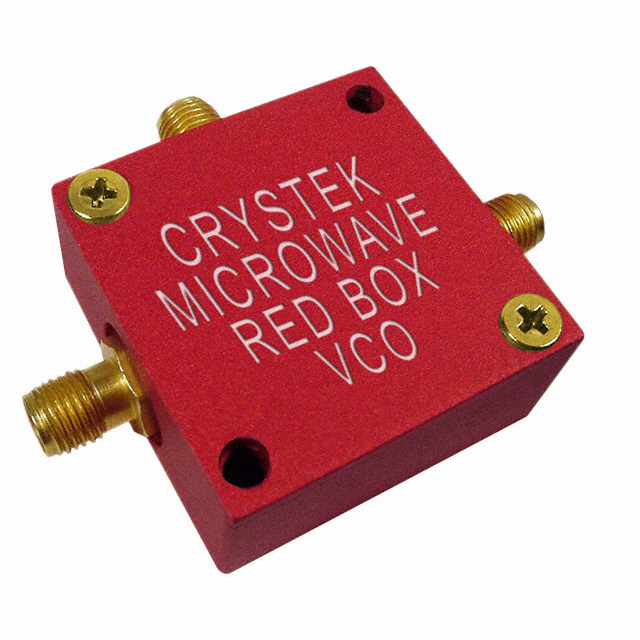

lmages are for reference only.CRBV55BE-1000-2000
VCO 1500MHZ 1-20V 31.75X14.99MM
DatasheetModule Adapter, SMA F (3)
16,951 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1500MHz Center Frequency 1 V ~ 20 V Voltage Controlled Oscillator 5.5 ±2.5 dBm -10 2nd Harmonic Typ (dBc)
CRBV55BE-1000-2000
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CRBV55, RedBox |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 1000 ~ 2000MHz |
| Frequency - Center | 1500MHz |
| Voltage - Supply | 10V |
| Tuning Voltage (VDC) | 1 V ~ 20 V |
| 2nd Harmonic, Typ (dBc) | -10 |
| Icc Max | 25mA |
| Pushing (MHz/V) | 2.5 |
| Power (dBm) | 5.5 ±2.5 |
| Phase Noise Typ (dBc/Hz) | -100 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module Adapter, SMA F (3) |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Height | 1.250" (31.75mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CRBV55BE-1000-2000 | CRBV55BE-1000-2000 | CRBV55BE-1000-1500 | CRBV55BE-1000-1500 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 1500MHZ 1-20V 31.75X14.99MM | VCO 1500MHZ 1-20V 31.75X14.99MM | VCO 1250MHZ 0.5-4.5V 31.75X14.99 | VCO 1250MHZ 0.5-4.5V 31.75X14.99 |
| Series | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox |
| Packaging | Tray | Tray | Tray | Tray |
