Product CatalogPart Number
CRGB1314ASE-500-TR
Manufacturer
Stanley Electric CoDescription
LED RGB SMD
Datasheet
DatasheetPackage
6-SMD, No Lead
In Stock
93,518 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CRGB1314ASE-500-TR
CRGB1314ASE-500-TR

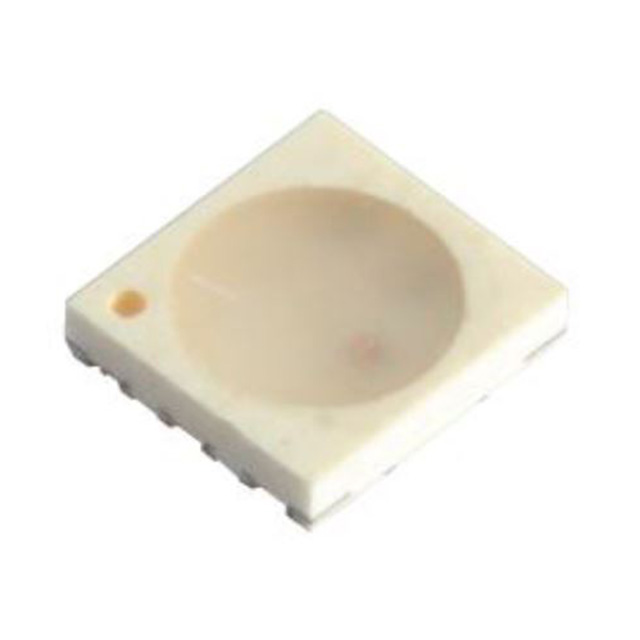

lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 622nm Red, 532nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.1V Blue 6-SMD, No Lead
Quick Inquiry
CRGB1314ASE-500-TR
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | - |
| Millicandela Rating | 820mcd Red, 2080mcd Green, 300mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.1V Blue |
| Current - Test | 22mA Red, 23mA Green, 14mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 532nm Green, 469nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | - |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 0.70mm |
| Base Product Number | CRGB1314 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | CRGB1314ASE-11-TR | CRGB1314ASE-13-TR | CRGB1314ASE-TR | CRGB1314AS-13-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED INDICATION SMD | LED INDICATION SMD | LED RGB DIFFUSED SMD | LED INDICATION SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
