Product CatalogPart Number
CRHV1206AF1G00FKE5
Manufacturer
Vishay DaleDescription
RES SMD 1G OHM 1% 0.3W 1206
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
18,560 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CRHV1206AF1G00FKE5
CRHV1206AF1G00FKE5

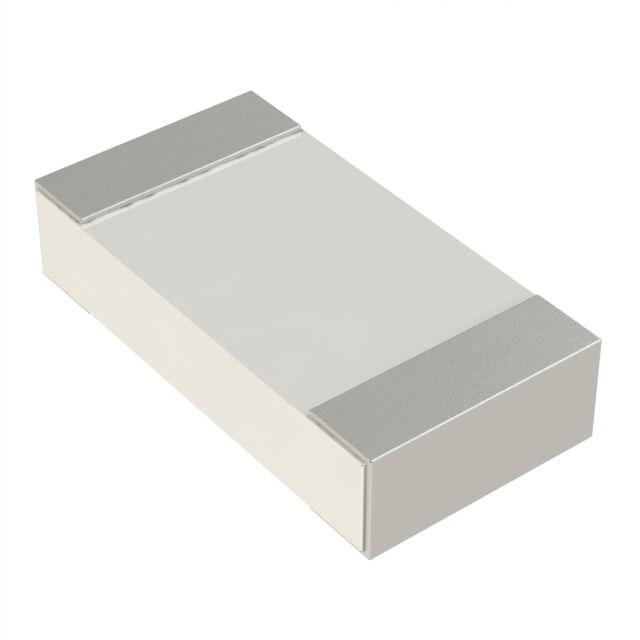

lmages are for reference only.Payment Methods
Delivery Services
1 GOhms ±1% 0.3W Chip Resistor 1206 (3216 Metric) High Voltage Thick Film
Quick Inquiry
CRHV1206AF1G00FKE5
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale |
| Series | CRHV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1 GOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.3W |
| Composition | Thick Film |
| Features | High Voltage |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.125" L x 0.063" W (3.18mm x 1.60mm) |
| Height - Seated (Max) | 0.027" (0.69mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CRHV1206AF1G00FKE1 | CRHV1206AF1G00FKEF | CRHV1206AF1G00FMF1 | CRHV1206AF1G00FMFF |
| Manufacturer | Vishay Dale | Vishay Techno | Vishay Dale | Vishay Techno |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 1G OHM, 1%, 0.3W, 1206, | CRHV1206, 3-SIDED, SOLDER COATED | RES SMD 1G OHM, 1%, 0.3W, 1206, | CRHV1206, 3-SIDED, SOLDER COATED |
| Series | Vishay Dale | Vishay Techno | Vishay Dale | Vishay Techno |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
