Product CatalogPart Number
CS1109A2.9
Manufacturer
CIT Relay and SwitchDescription
SWITCH TACTILE SPST-NO 0.05A 50V
Datasheet
DatasheetPackage
-
In Stock
101,925 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CS1109A2.9
CS1109A2.9
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
CS1109A2.9
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | CIT Relay and Switch |
| Series | CS1109 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 50VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 2.90mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Outline | 6.20mm x 6.20mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Switch Travel | 0.25mm |
| Mechanical Life | - |
| Base Product Number | CS1109A |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

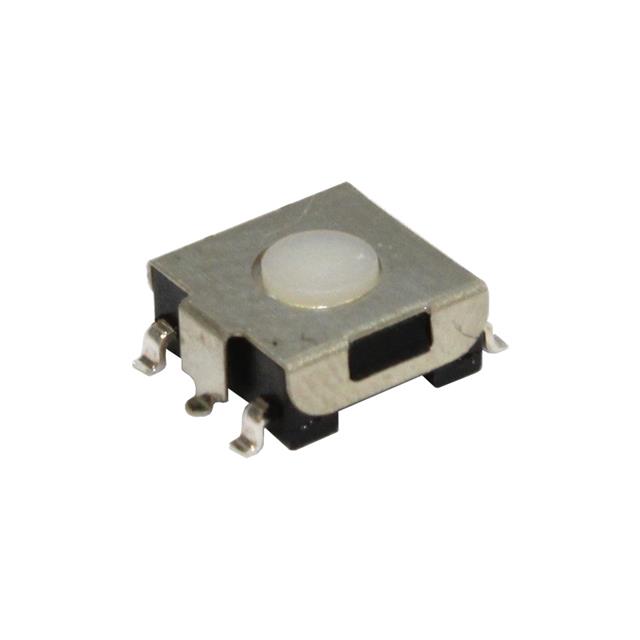

| Part Number | CS1109A2.6 | CS1109A3.1 | CS11014.3F160 | CS11014.3F160J |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 50V | SWITCH TACTILE SPST-NO 0.05A 50V | SWITCH TACTILE SPST-NO 0.05A 50V | SWITCH TACTILE SPST-NO 0.05A 50V |
| Series | CS1109 | CS1109 | CS1101 | CS1101 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
Customers Also Interested in
Recommended Products
CS11014.3F160
CIT Relay and Switch

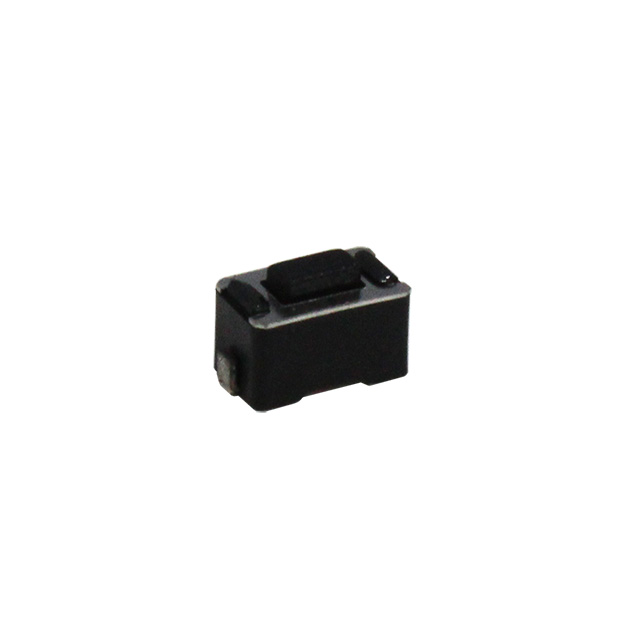

CS11014.3F160J
CIT Relay and Switch
CS11014.3F260
CIT Relay and Switch
CS11014.3F260J
CIT Relay and Switch
CS11015.0F160
CIT Relay and Switch
CS11015.0F160J
CIT Relay and Switch
CS11015.0F260
CIT Relay and Switch
CS11015.0F260J
CIT Relay and Switch

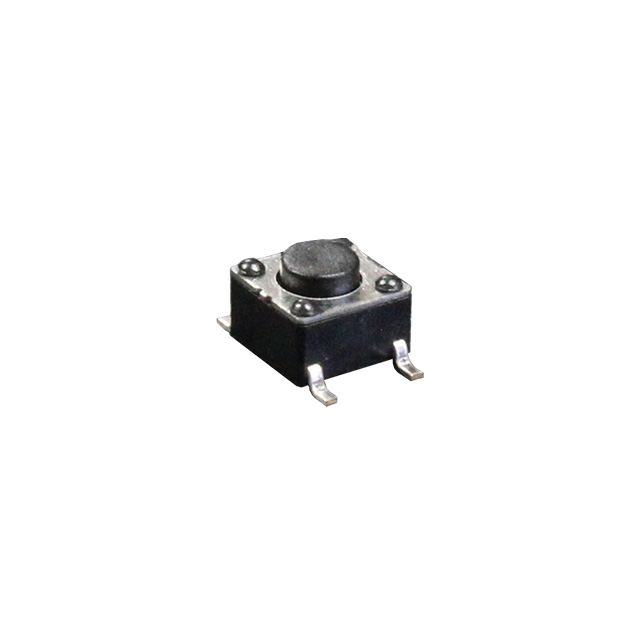

CS11024.3F100
CIT Relay and Switch

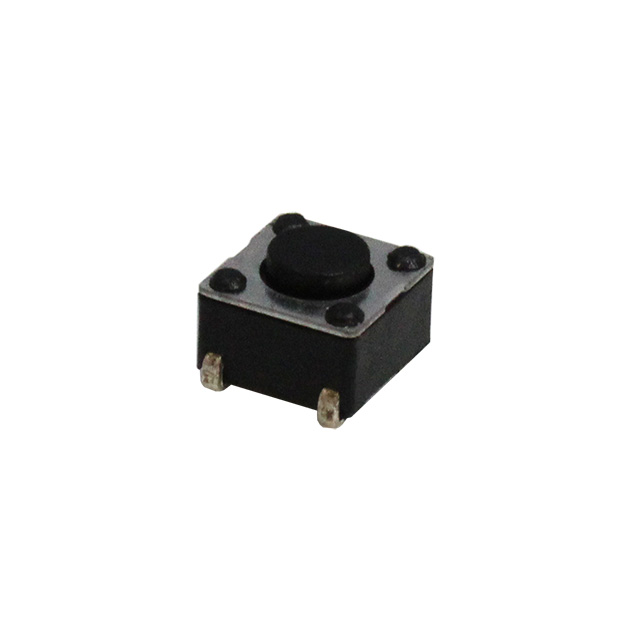

CS11024.3F100J
CIT Relay and Switch

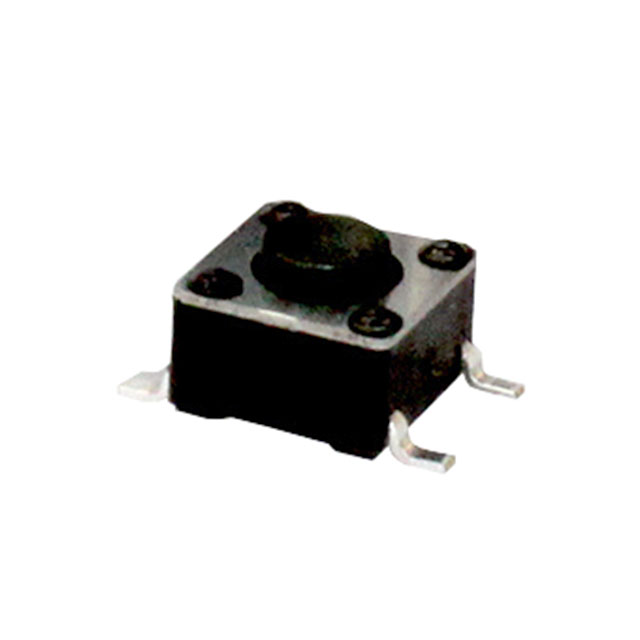

CS11024.3F160
CIT Relay and Switch
CS11024.3F160J
CIT Relay and Switch
CS11024.3F260
CIT Relay and Switch
CS11024.3F260J
CIT Relay and Switch

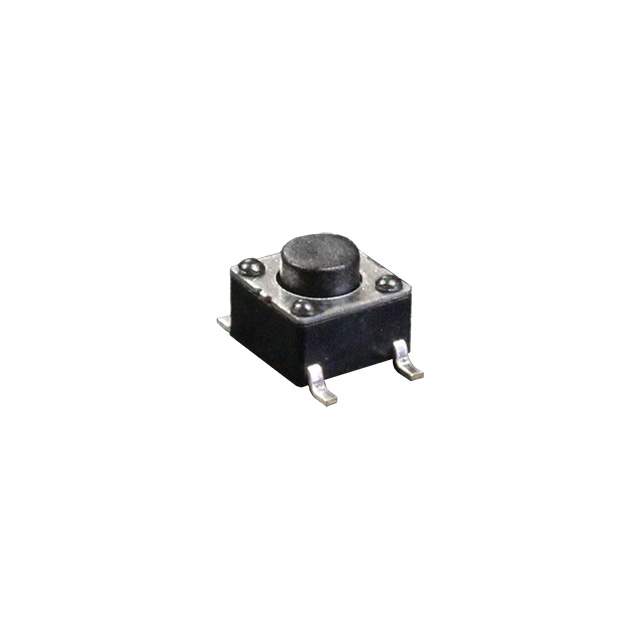

CS11025.0F100
CIT Relay and Switch

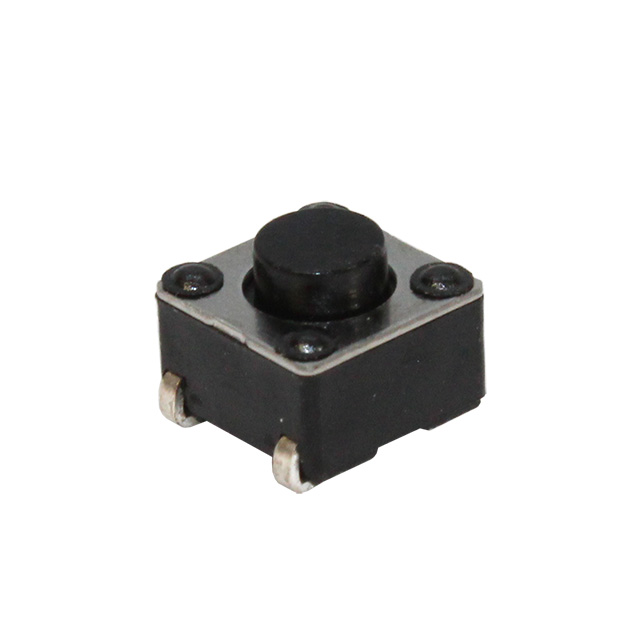

CS11025.0F100J
