Product CatalogPart Number
CS5205-2GT3
Manufacturer
onsemiDescription
IC REG LINEAR 1.5V 5A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
87,831 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CS5205-2GT3
CS5205-2GT3
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 5A TO-220-3
Quick Inquiry
CS5205-2GT3
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 5A |
| Current - Output | 5A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Base Product Number | CS5205 |
| Current - Supply (Max) | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CS5205-2GDP3 | CS5205-2GDPR3 | CS5201-1GDPR3 | CS5201-1GST3 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC REG LINEAR FIXED LDO REG | IC REG LINEAR 1.5V 5A D2PAK-3 | IC REG LINEAR POS ADJ 1A D2PAK-3 | IC REG LINEAR ADJ LDO REGULATOR |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
CS5201-1GDPR3
onsemi
CS5201-1GST3
onsemi
CS5201-1GSTR3
onsemi
CS5201-1GT3
onsemi
CS5201-3GSTR3
onsemi

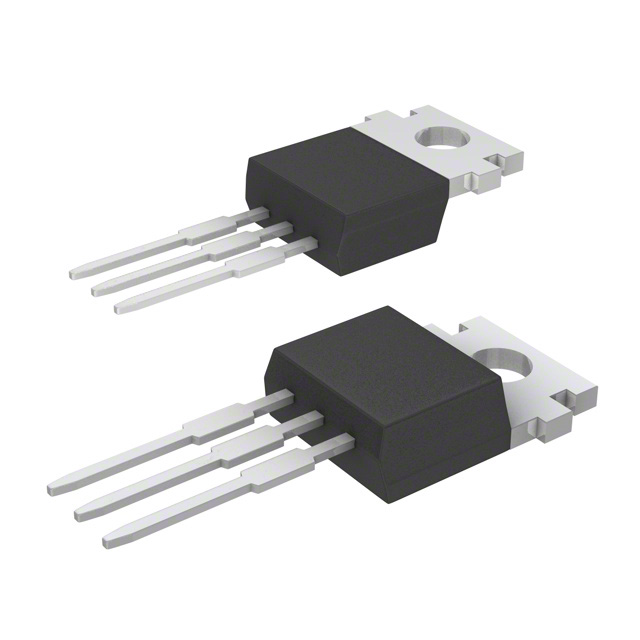

CS5201-3GT3
onsemi

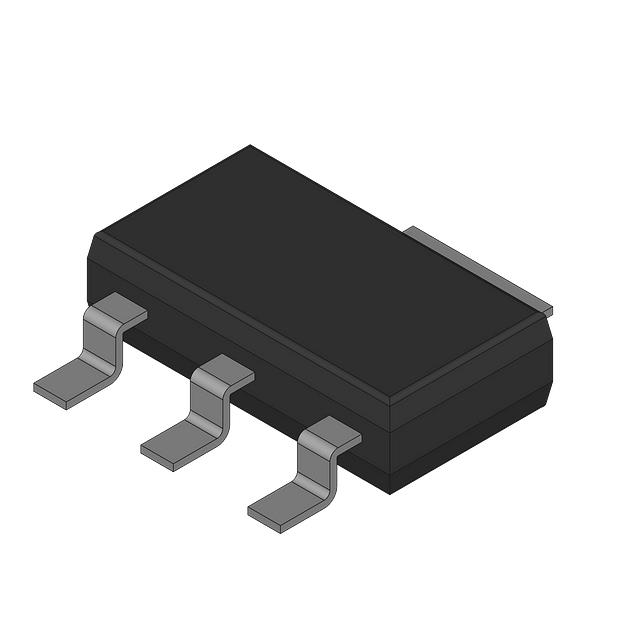

CS52015-1GST3
onsemi
CS52015-1GSTR3
onsemi
CS52015-1GT3
onsemi
CS52015-3GDP3
onsemi
CS52015-3GDPR3
onsemi

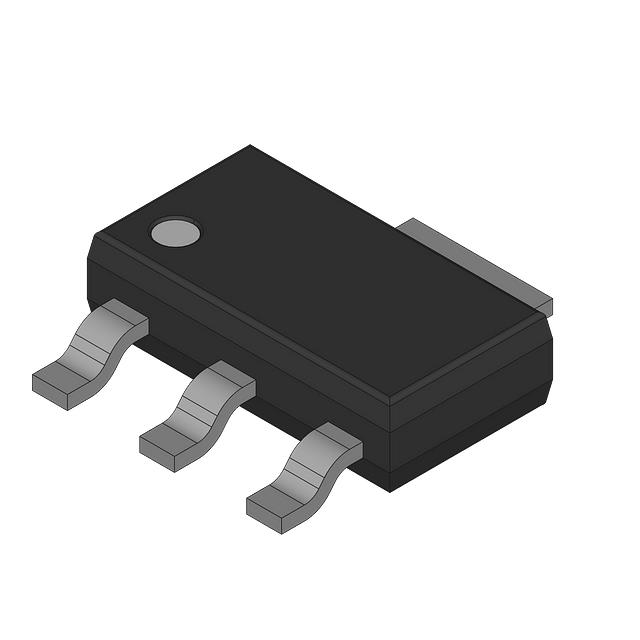

CS52015-3GST3
