Product CatalogPart Number
CS8126-1YTHA5
Manufacturer
onsemiDescription
IC REG LIN 5V 750MA TO220-5
Datasheet
DatasheetPackage
TO-220-5 Formed Leads
In Stock
49,266 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CS8126-1YTHA5
CS8126-1YTHA5
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 750mA TO-220-5 Horizontal
Quick Inquiry
CS8126-1YTHA5
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 750mA |
| Current - Quiescent (Iq) | 70 mA |
| PSRR | 75dB (120Hz) |
| Control Features | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal |
| Base Product Number | CS8126 |
| Current - Supply (Max) | 100 mA |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CS8126-1YTHA5G | CS8126-1YT5 | CS8126-1YT5G | CS8126-1YTHE5 |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||

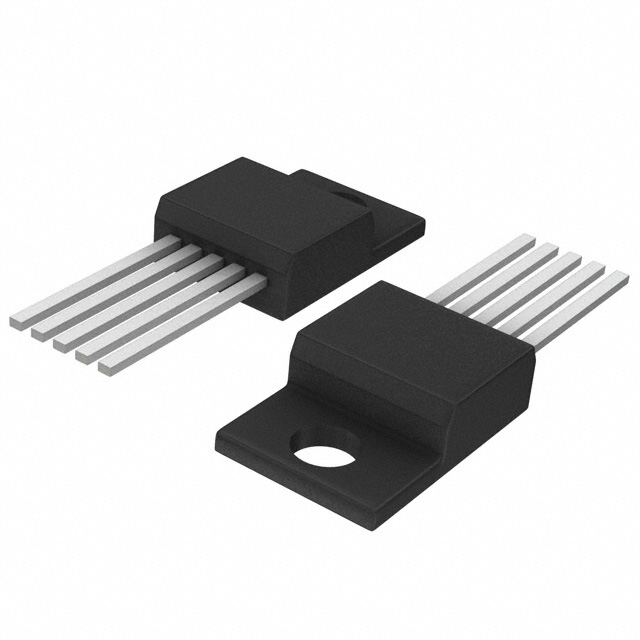

| Description | IC REG LIN 5V 750MA TO220-5 | IC REG LINEAR 5V 750MA TO220-5 | IC REG LINEAR 5V 750MA TO220-5 | IC REG LINEAR 5V 750MA TO220-5 |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

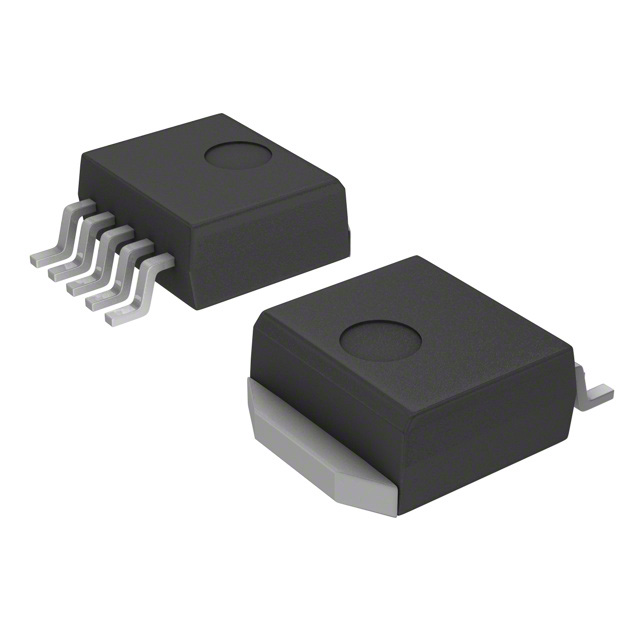

CS8120YDPR5
onsemi
CS8120YDR14
onsemi
CS8120YN8
onsemi
CS8120YT5
onsemi
CS8120YTHA5
onsemi
CS8120YTVA5
onsemi

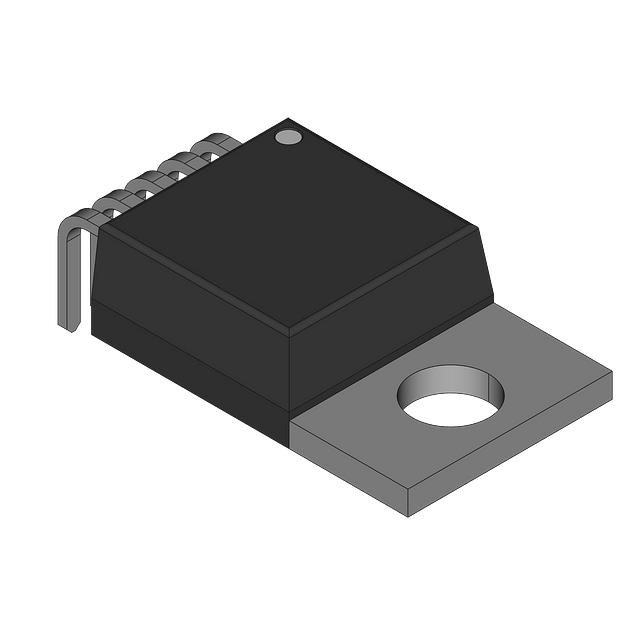

CS8121YTVA5
onsemi
CS8122YT5
onsemi
CS8122YT5G
onsemi

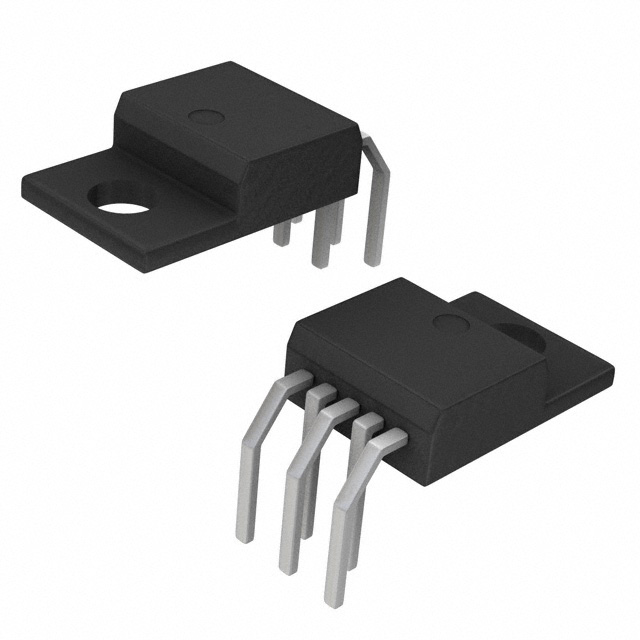

CS8122YTHA5
onsemi
CS8122YTHA5G
onsemi

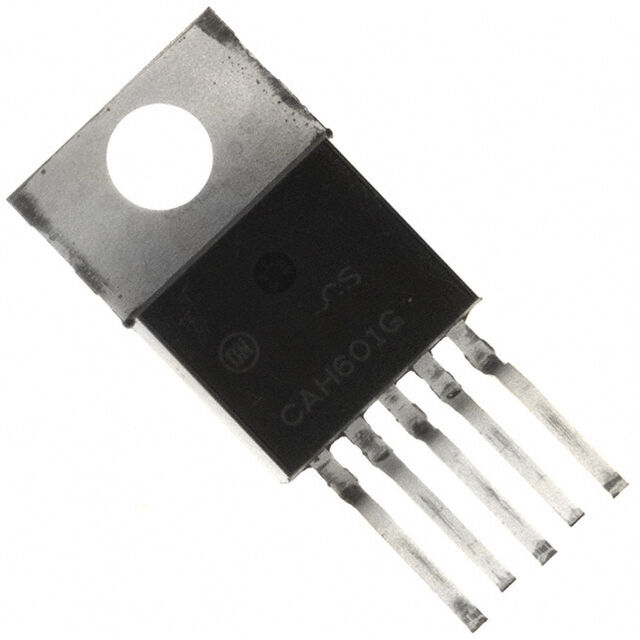

CS8122YTVA5
