CSBLA800KJ58-B0

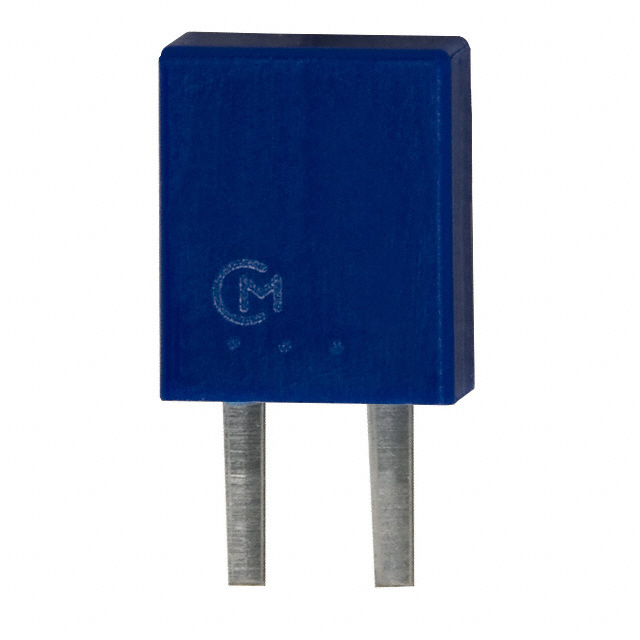

lmages are for reference only.CSBLA800KJ58-B0
CER RES 800.0000KHZ 100PF T/H
DatasheetRadial, Box - 2 Lead, 2.50mm Pitch
84,244 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
800 kHz Ceramic Resonator 100 pF ±0.3% 60 Ohms -20°C ~ 80°C Through Hole
CSBLA800KJ58-B0
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Murata Electronics |
| Series | CERALOCK® CSBLA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 800 kHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | - |
| Capacitance | 100 pF |
| Impedance | 60 Ohms |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | Radial, Box - 2 Lead, 2.50mm Pitch |
| Size / Dimension | 0.197" L x 0.087" W (5.00mm x 2.20mm) |
| Height | 0.236" (6.00mm) |
| Base Product Number | CSBLA |
| Product Attribute |  |
 |
 |
 |

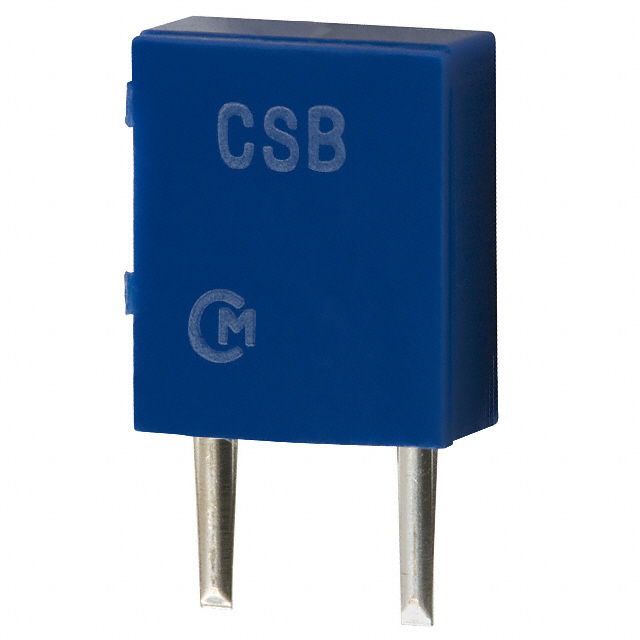

| Part Number | CSBLA1M00J58-B0 | CSBLA1M25J58-B0 | CSBLA400KECE-B0 | CSBLA455KEC8-B0 |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CERAMIC RES 1.0000MHZ 100PF T/H | RESONATOR 1.25MHZ CERAMIC | CERAMIC RES 400.0000KHZ T/H | CERAMIC RES 455.0000KHZ T/H |
| Series | CERALOCK® CSBLA | - | CERALOCK® CSBLA | CERALOCK® CSBLA |
| Packaging | Bulk | Bulk | Bulk | Bulk |
