CSLA1GF
lmages are for reference only.CSLA1GF
SENSOR CURRENT HALL 100A AC/DC
DatasheetModule, Single Pass Through
20,093 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
CSLA1GF
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CSLA |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 29.7mV/N |
| Frequency | - |
| Linearity | - |
| Accuracy | - |
| Voltage - Supply | 8V ~ 16V |
| Response Time | 3µs |
| Current - Supply (Max) | 19mA |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | CSLA1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CSLA1GD | CSLA1GE | CSLA1CD | CSLA1CE |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

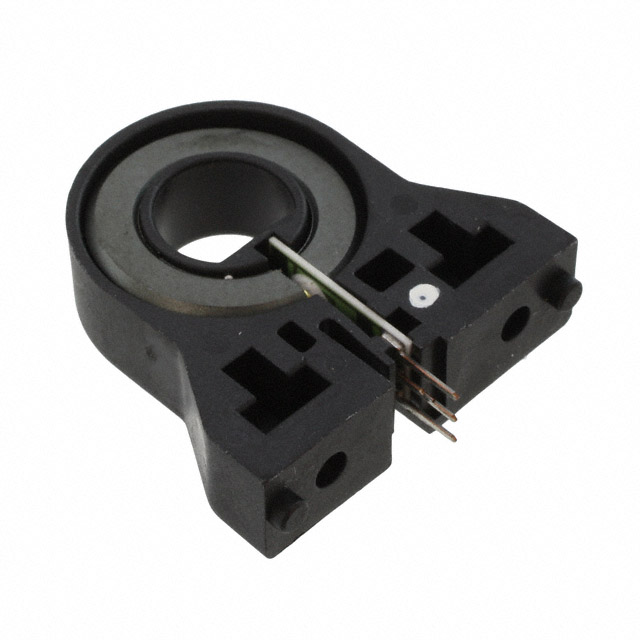

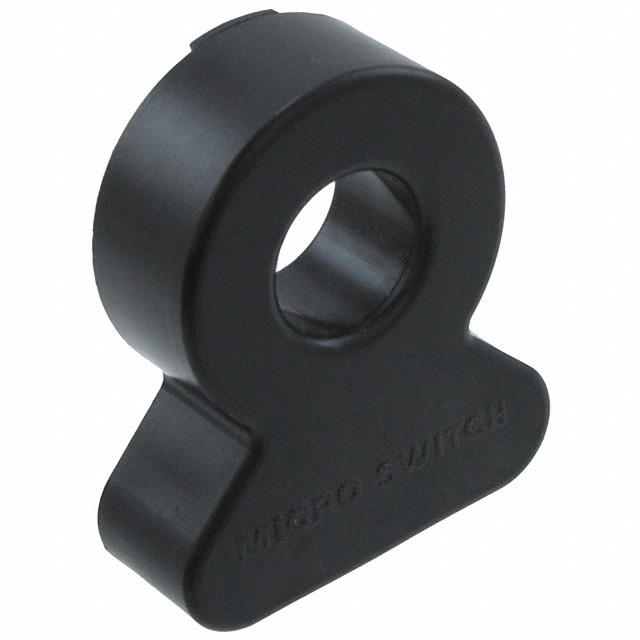

| Description | SENSOR CURRENT HALL 57A AC/DC | SENSOR CURRENT HALL 75A AC/DC | SENSOR CURRENT HALL 57A AC/DC | SENSOR CURRENT HALL 75A AC/DC |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
