CSM-015G-LP
lmages are for reference only.CSM-015G-LP
SENSOR 15PSIG 0.09" .066V 8CSMD
Datasheet8-CSMD, No Lead, Top Port
65,771 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.09" (2.29mm) Tube 0 mV ~ 66 mV (3V) 8-CSMD, No Lead, Top Port
CSM-015G-LP
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | CSM |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | CSM-015G |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 66 mV (3V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 6V |
| Port Size | Male - 0.09" (2.29mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-CSMD, No Lead, Top Port |
| Supplier Device Package | 8-CSMD |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

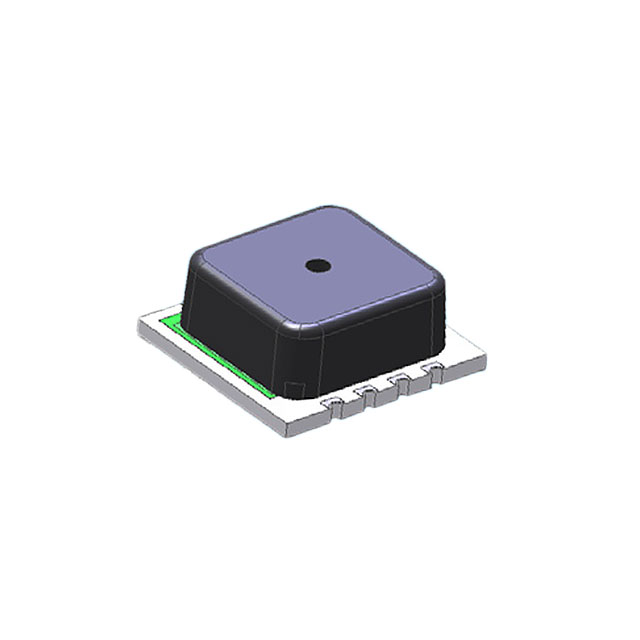

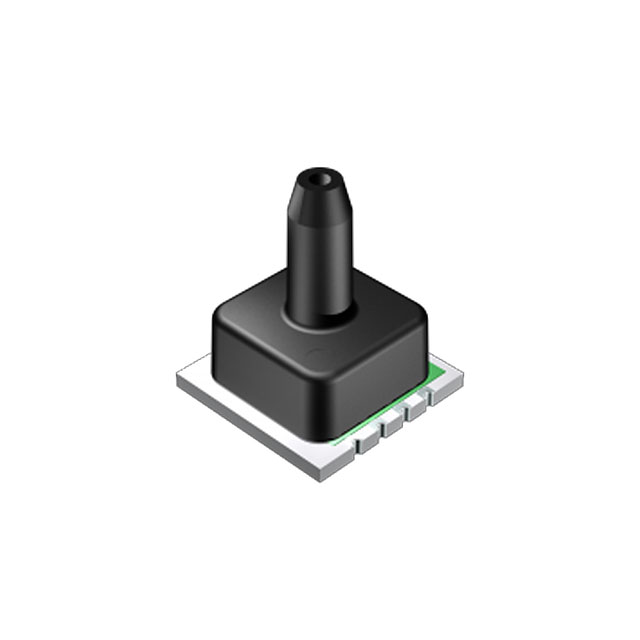

| Part Number | CSM-015G-LF | CSM-001G-LF | CSM-001G-LF | CSM-001G-LP |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSIG .066V 8CSMD | SENSOR 1PSIG .0228V 8CSMD | SENSOR 1PSIG .0228V 8CSMD | SENSOR 1PSIG 0.09" .0228V 8CSMD |
| Series | CSM | CSM | CSM | CSM |
| Packaging | Tube | Bulk | Bulk | Bulk |
