CSR1206-0R01F1
lmages are for reference only.CSR1206-0R01F1
RES 0.01 OHM 1% 1W 1206
Datasheet1206 (3216 Metric)
53,988 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense, Non-Inductive Metal Element
CSR1206-0R01F1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Riedon products by Bourns |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Riedon products by Bourns |
| Series | CSR |
| Resistance | 10 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Element |
| Features | Current Sense, Non-Inductive |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

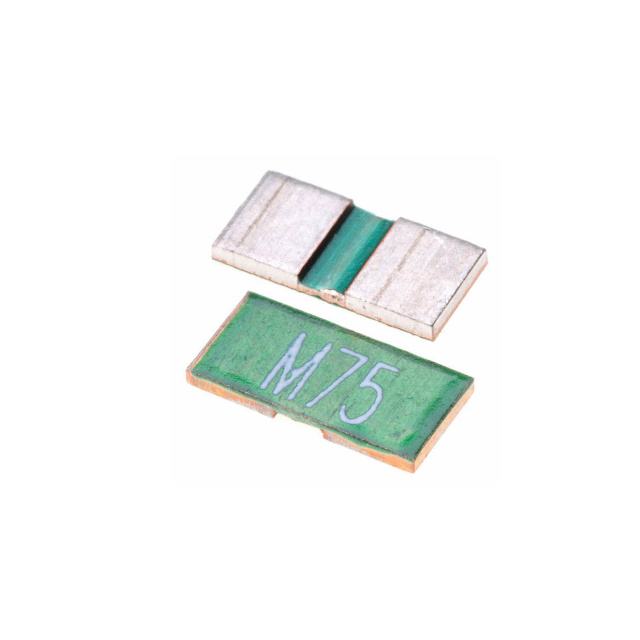

| Part Number | CSR1206-0R004F1 | CSR1206-0R005F1 | CSR1206-0R007F1 | CSR1206FK10L0 |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.004 OHM 1% 1W 1206 | RES 0.005 OHM 1% 1W 1206 | RES 0.007 OHM 1% 1W 1206 | RES 0.01 OHM 1% 1/2W 1206 |
| Series | Riedon products by Bourns | Stackpole Electronics Inc | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
