Product CatalogPart Number
CTB1C101MCB6358
Manufacturer
Chinsan (Elite)Description
CAP ALUM 100UF 20% 16V SMD
Datasheet
DatasheetPackage
Radial, Can - SMD
In Stock
50,410 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CTB1C101MCB6358
CTB1C101MCB6358
lmages are for reference only.Payment Methods
Delivery Services
100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Quick Inquiry
CTB1C101MCB6358
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | CTB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

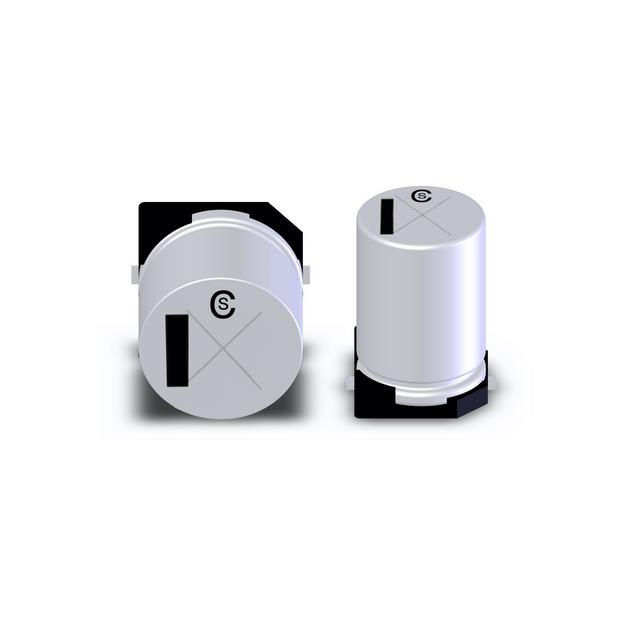

| Part Number | CTB1C100MCB0458 | CTB1C470MCB6358 | 25YXM100MEFR6.3X11 | 16PX100MEFCTA5X11 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10UF 20% 16V SMD | CAP ALUM 47UF 20% 16V SMD | CAP ALUM 100UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 16V RADIAL TH |
| Series | Chinsan (Elite) | Chinsan (Elite) | Rubycon | Rubycon |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
