CTL0501F

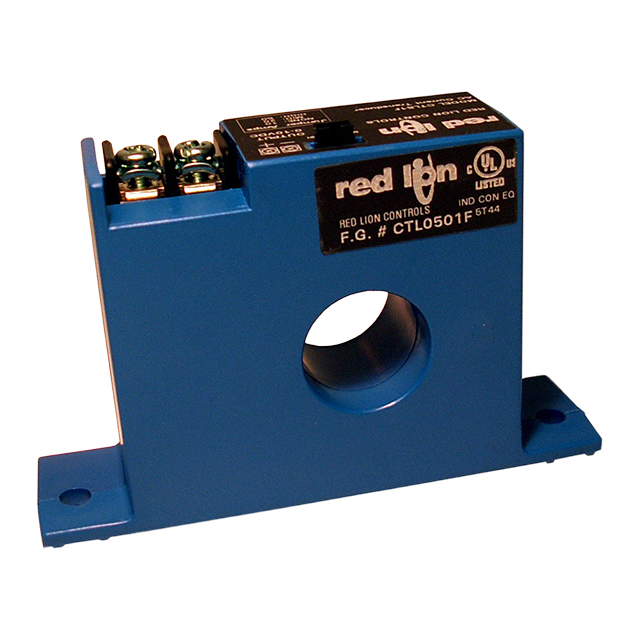

lmages are for reference only.CTL0501F
SENSOR CURRENT XFMR 10A, 20, 50A
DatasheetModule, Single Pass Through
89,767 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 10A, 20, 50A (Selectable) 1 Channel Transformer w/Conditioning Bidirectional Module, Single Pass Through
CTL0501F
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Red Lion Controls |
| Series | CTL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC |
| Sensor Type | Transformer w/Conditioning |
| Current - Sensing | 10A, 20, 50A (Selectable) |
| Number of Channels | 1 |
| Output | Ratiometric, 0 V ~ 10 V |
| Sensitivity | - |
| Frequency | 50Hz ~ 60Hz |
| Linearity | - |
| Accuracy | ±1% |
| Voltage - Supply | Self Powered |
| Response Time | 100ms |
| Current - Supply (Max) | - |
| Operating Temperature | -20°C ~ 50°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | CTL0501 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CTL0502F | CTL0502S | CT 0.1-P | CT 0.1-TP |
| Manufacturer | Red Lion Controls | Red Lion Controls | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | SENSOR CURRENT XFMR 10A, 20, 50A | SENSOR CURRENT XFMR 10A, 20, 50A | SENSOR CURRENT FLUX 200MA AC/DC | SENSOR CURRENT FLUX 100MA AC/DC |
| Series | Red Lion Controls | Red Lion Controls | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
