CTR20000
lmages are for reference only.CTR20000
SENSOR CURRENT 100A, 150A, 200A
DatasheetModule, Single Pass Through
21,726 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 100A, 150A, 200A (Selectable) 1 Channel Transformer w/Conditioning Bidirectional Module, Single Pass Through
CTR20000
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Red Lion Controls |
| Series | CTR |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC |
| Sensor Type | Transformer w/Conditioning |
| Current - Sensing | 100A, 150A, 200A (Selectable) |
| Number of Channels | 1 |
| Output | Ratiometric, 4mA ~ 20mA |
| Sensitivity | - |
| Frequency | 10Hz ~ 400Hz |
| Linearity | - |
| Accuracy | ±0.8% |
| Voltage - Supply | 24V |
| Response Time | 600ms |
| Current - Supply (Max) | 23mA |
| Operating Temperature | -20°C ~ 50°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

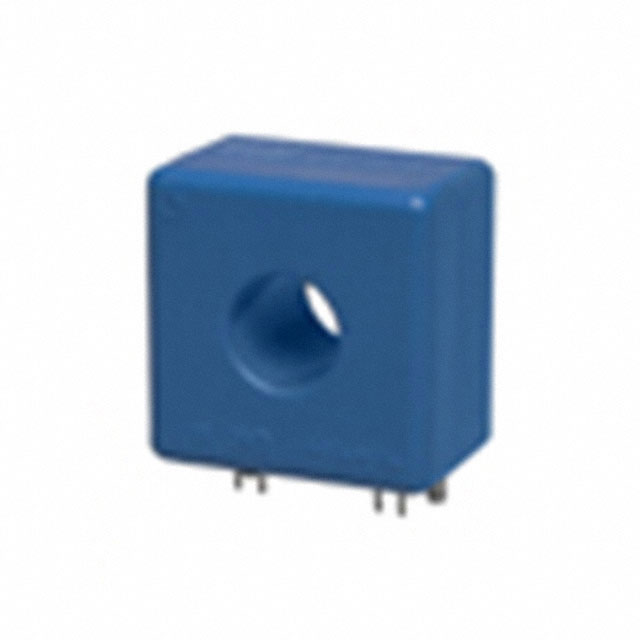

| Part Number | CT 0.1-P | CT 0.1-TP | CT 0.2-P | CT 0.2-TP |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR CURRENT FLUX 200MA AC/DC | SENSOR CURRENT FLUX 100MA AC/DC | SENSOR CURRENT FLUX 200MA AC/DC | SENSOR CURRENT FLUX 200MA AC/DC |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
