CTX33-3A-R

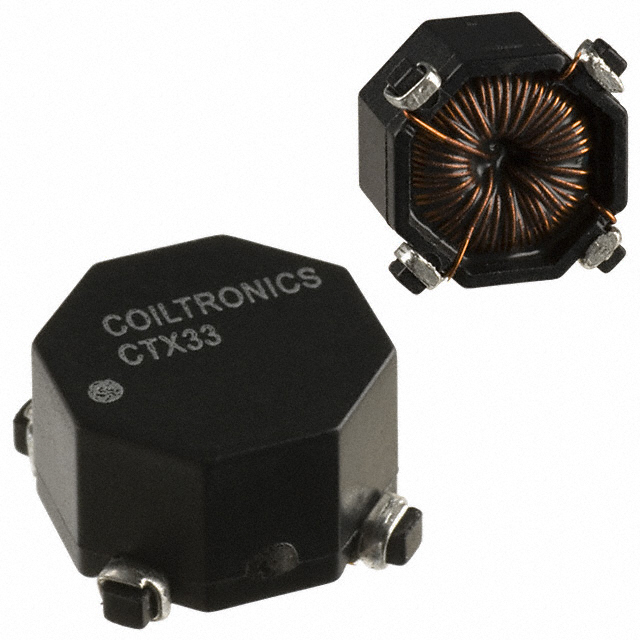

lmages are for reference only.CTX33-3A-R
INDUCT ARRAY 2 COIL 33.71UH SMD
DatasheetNonstandard
47,399 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Unshielded 2 Coil Inductor Array 134.8 µH Inductance - Connected in Series 33.71 µH Inductance - Connected in Parallel 112mOhm Max DC Resistance (DCR) - Parallel 1.93 A Nonstandard
CTX33-3A-R
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Eaton - Electronics Division |
| Series | OCTA-PAC® PLUS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33.71 µH |
| Inductance - Connected In Series | 134.8 µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 1.93 A |
| Current Rating - Series | 960 mA |
| Current Saturation - Parallel | 1.61 A |
| Current Saturation - Series | 800 mA |
| DC Resistance (DCR) - Parallel | 112mOhm Max |
| DC Resistance (DCR) - Series | 449mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.190" (4.83mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CTX33-3A-R | CTX33-3-R | CTX33-3-R | CTX33-3P-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 33.71UH SMD | INDUCT ARRAY 2 COIL 32.86UH SMD | INDUCT ARRAY 2 COIL 32.86UH SMD | INDUCT ARRAY 2 COIL 32.63UH SMD |
| Series | OCTA-PAC® PLUS | OCTA-PAC® | OCTA-PAC® | Econo-Pac™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
