Product CatalogPart Number
CU01SAV1S00
Manufacturer
Cvilux USADescription
USB TYPE-A SINGLE PORT STRAIGHT
Datasheet
DatasheetPackage
-
In Stock
86,648 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CU01SAV1S00
CU01SAV1S00
lmages are for reference only.Payment Methods
Delivery Services
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
Quick Inquiry
CU01SAV1S00
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Cvilux USA |
| Series | CU01 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-A (USB TYPE-A) |
| Number of Contacts | 4 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Through Hole |
| Mounting Feature | Vertical |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | 0°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A |
| Voltage - Rated | 30VAC |
| Mating Cycles | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | CU01SAV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

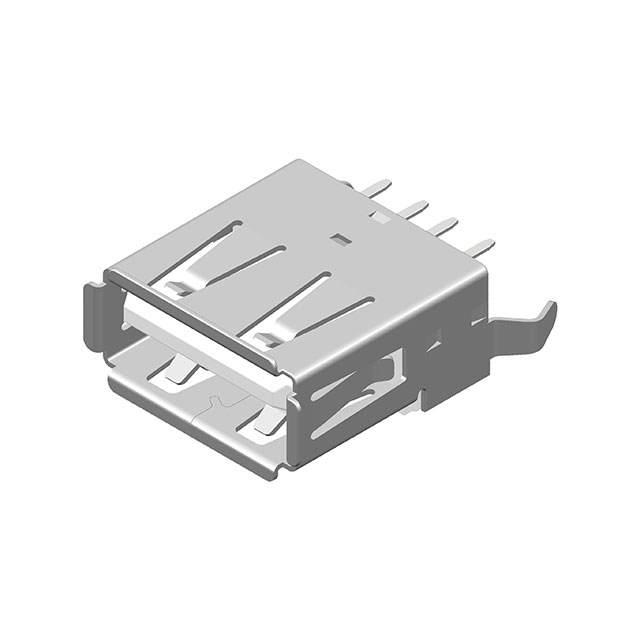

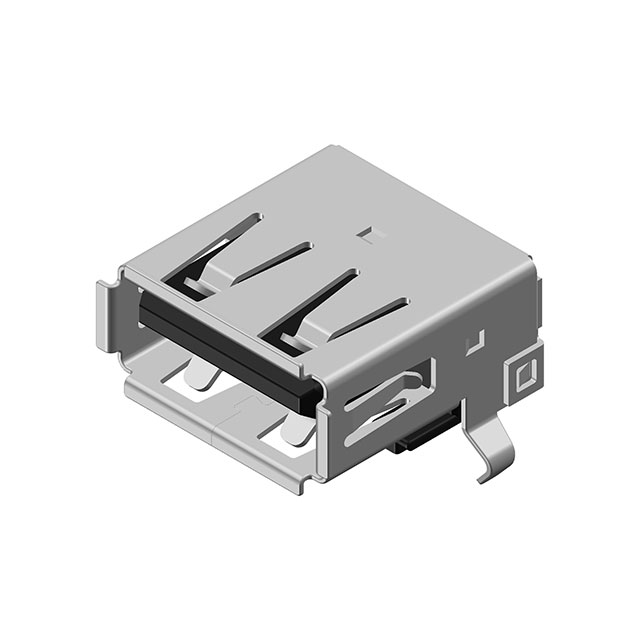

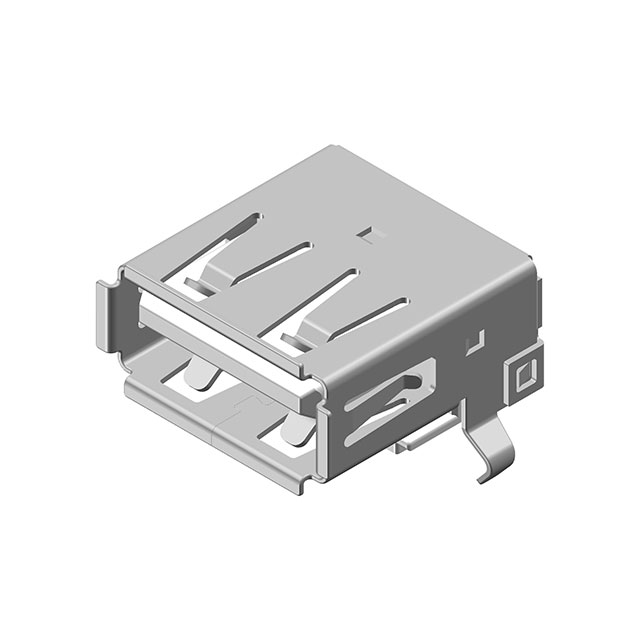

| Part Number | CU01SAH0S00 | CU01SAH1S00-NH | CU01SAV0S00 | C-ARA1-AK515-1 |
| Manufacturer | Cvilux USA | Cvilux USA | Cvilux USA | CNC Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | USB TYPE-A SINGLE PORT RIGHT ANG | USB TYPE-A SINGLE PORT RIGHT ANG | USB TYPE-A SINGLE PORT STRAIGHT | CONN RCP USB3.0 TYPEC 24P SMD RA |
| Series | CU01 | CU01 | CU01 | ARA1 |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
