CV35A090
lmages are for reference only.CV35A090
CAP TRIMMER 2.5-9PF 100V TH
Datasheet-
82,852 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.5 ~ 9pF Trimmer Capacitor 100 V Top Through Hole
CV35A090
| Category | Capacitors - Trimmers-Variable Capacitors - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 518 |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Capacitance Range | 2.5 ~ 9pF |
| Adjustment Type | Top |
| Voltage - Rated | 100 V |
| Dielectric Material | Ceramic |
| Q @ Freq | 500 @ 1MHz |
| Size / Dimension | 0.218" Dia (5.54mm) |
| Height - Seated (Max) | 0.145" (3.68mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Features | General Purpose |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

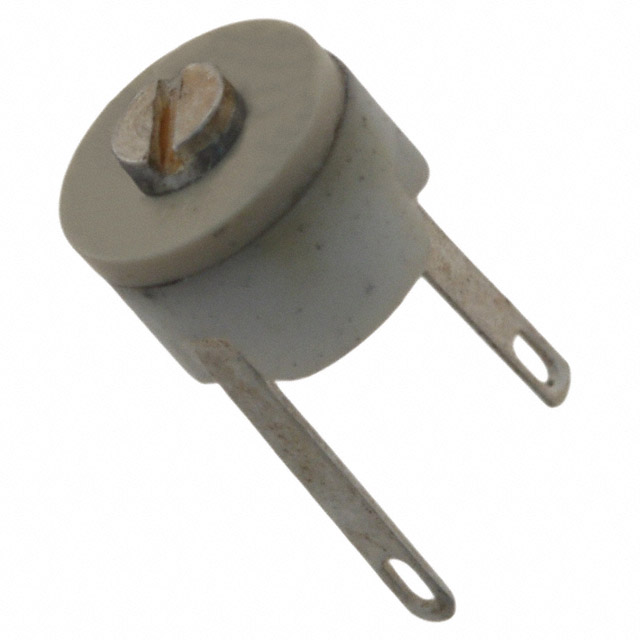

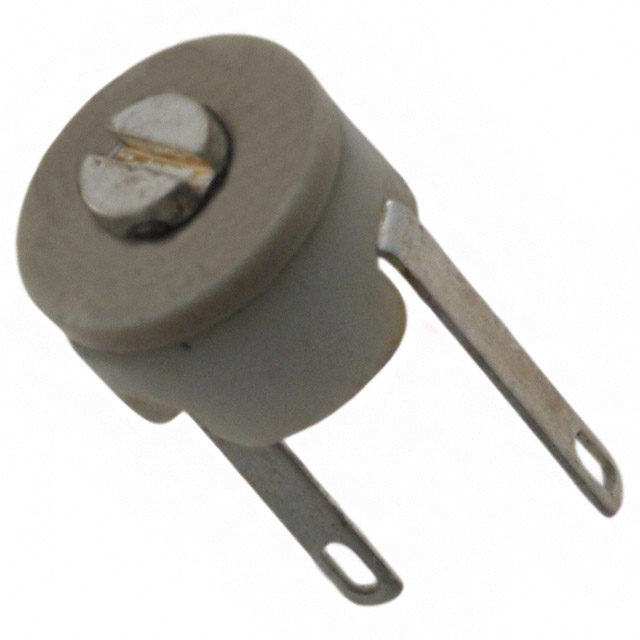

| Part Number | CV35A200 | CV35A250 | CV31D350 | CV31B110 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP TRIMMER 3.5-20PF 100V TH | CAP TRIMMER 5-25PF 100V TH | CAP TRIMMER 9-35PF 200V TH | CAP TRIMMER 2.5-11PF 350V TH |
| Series | 518 | 518 | 538 | 538 |
| Packaging | Tray | Tray | Tray | Tray |
