CVCO33BE-2400-2500

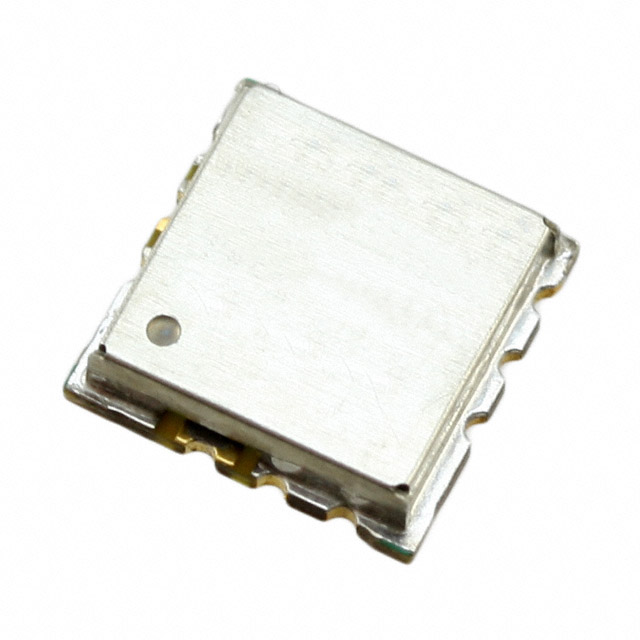

lmages are for reference only.CVCO33BE-2400-2500
VCO 2450MHZ 0-3V 7.62MMX7.62MM
Datasheet12-QFN, Variant
34,053 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2450MHz Center Frequency 0 V ~ 3 V Voltage Controlled Oscillator 3 ±2 dBm -20 2nd Harmonic Typ (dBc)
CVCO33BE-2400-2500
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO33 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2400 ~ 2500MHz |
| Frequency - Center | 2450MHz |
| Voltage - Supply | 3V |
| Tuning Voltage (VDC) | 0 V ~ 3 V |
| 2nd Harmonic, Typ (dBc) | -20 |
| Icc Max | 19mA (Typ) |
| Pushing (MHz/V) | 5 |
| Power (dBm) | 3 ±2 |
| Phase Noise Typ (dBc/Hz) | -96 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 12-QFN, Variant |
| Size / Dimension | 0.300" L x 0.300" W (7.62mm x 7.62mm) |
| Height | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO33BE-2400-2500 | CVCO33BE-2400-2500 | CVCO33CL-0110-0150 | CVCO33CL-0110-0150 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 2450MHZ 0-3V 7.62MMX7.62MM | VCO 2450MHZ 0-3V 7.62MMX7.62MM | VCO 130MHZ 0-5V 7.62MM X 7.62MM | VCO 130MHZ 0-5V 7.62MM X 7.62MM |
| Series | CVCO33 | CVCO33 | CVCO33 | CVCO33 |
| Packaging | Strip | Strip | Strip | Strip |
