CVCO55BE-0400-0800

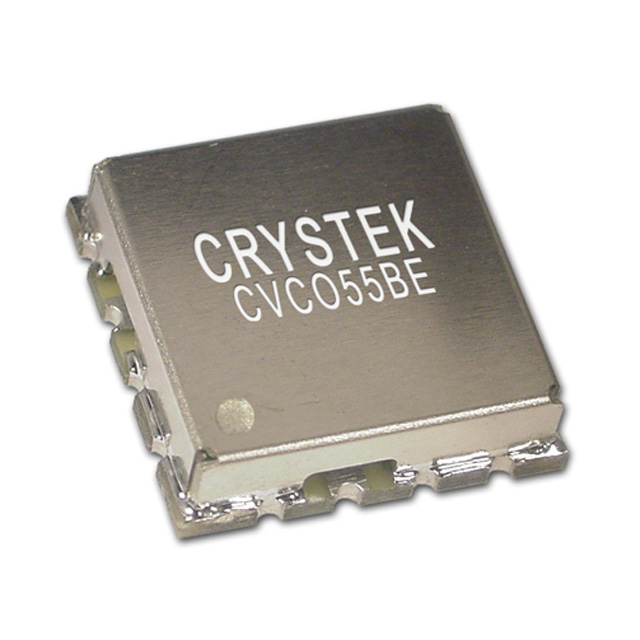

lmages are for reference only.CVCO55BE-0400-0800
VCO 600MHZ 0-12V 12.7X12.7MM
Datasheet16-QFN, Variant
90,839 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600MHz Center Frequency 0 V ~ 12 V Voltage Controlled Oscillator 7 ±5 dBm -5 2nd Harmonic Typ (dBc)
CVCO55BE-0400-0800
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 400 ~ 800MHz |
| Frequency - Center | 600MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0 V ~ 12 V |
| 2nd Harmonic, Typ (dBc) | -5 |
| Icc Max | 17mA |
| Pushing (MHz/V) | 5 |
| Power (dBm) | 7 ±5 |
| Phase Noise Typ (dBc/Hz) | -105 |
| Operating Temperature | -10°C ~ 70°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.150" (3.81mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55BE-0400-0800 | CVCO55BE-0400-0800 | CVCO55BE-0325-0775 | CVCO55BE-0325-0775 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 600MHZ 0-12V 12.7X12.7MM | VCO 600MHZ 0-12V 12.7X12.7MM | VCO 550MHZ 0-12V 12.7X12.7MM | VCO 550MHZ 0-12V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
