Product CatalogPart Number
CW160808-R15G
Manufacturer
Bourns Inc.Description
FIXED IND 150NH 280MA 920MOHM SM
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
98,794 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CW160808-R15G
CW160808-R15G

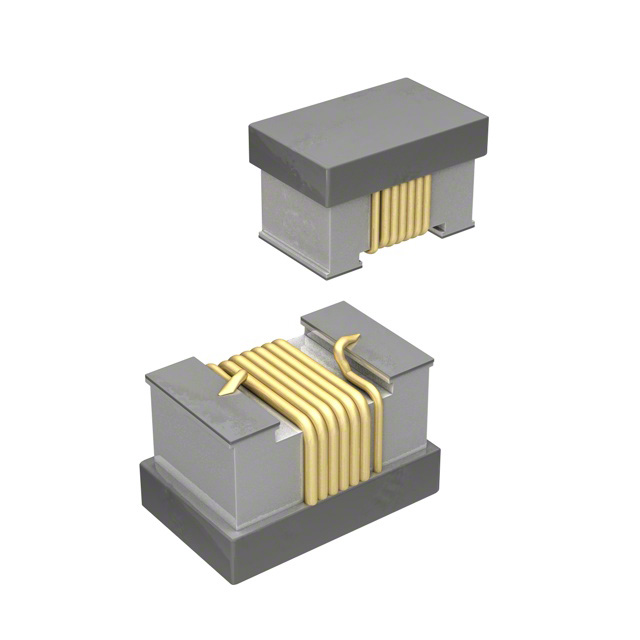

lmages are for reference only.Payment Methods
Delivery Services
150 nH Unshielded Drum Core, Wirewound Inductor 280 mA 920mOhm 0603 (1608 Metric)
Quick Inquiry
CW160808-R15G
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | CW160808 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 150 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 920mOhm |
| Q @ Freq | 28 @ 150MHz |
| Frequency - Self Resonant | 1.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | CW160808 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | CW160808-R15G | CW160808-R15J | CW160808-R10G | CW160808-R10J |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 150NH 280MA 920MOHM SM | FIXED IND 150NH 280MA 920MOHM SM | FIXED IND 100NH 400MA 710MOHM SM | FIXED IND 100NH 400MA 710MOHM SM |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
