Product CatalogPart Number
CWR26HK226JCGC\HR
Manufacturer
Vishay SpragueDescription
CAP TANT 22UF 5% 15V 2711
Datasheet
DatasheetPackage
2711 (6728 Metric)
In Stock
83,352 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CWR26HK226JCGC\HR
CWR26HK226JCGC\HR

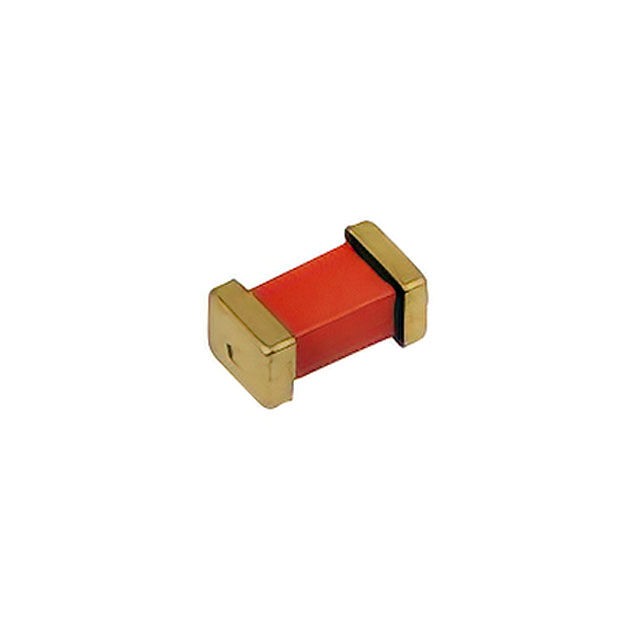

lmages are for reference only.Payment Methods
Delivery Services
22 µF Conformal Coated Tantalum Capacitors 15 V 2711 (6728 Metric) 275mOhm
Quick Inquiry
CWR26HK226JCGC\HR
Specifications
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | CWR26 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 µF |
| Tolerance | ±5% |
| Voltage - Rated | 15 V |
| Type | Conformal Coated |
| ESR (Equivalent Series Resistance) | 275mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2711 (6728 Metric) |
| Size / Dimension | 0.265" L x 0.110" W (6.73mm x 2.79mm) |
| Height - Seated (Max) | 0.125" (3.17mm) |
| Lead Spacing | - |
| Manufacturer Size Code | G |
| Ratings | - |
| Features | High Reliability |
| Failure Rate | C (0.01%) |
| Grade | Military |
| Qualification | MIL-PRF-55365/13 |
| Base Product Number | CWR26 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | CWR26HK226JCGC | CWR26HK226JCGC\PR | CWR26HK226JCGC\TR | CWR26HK226JBGA |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 22UF 5% 15V 2711 | CAP TANT 22UF 5% 15V 2711 | CAP TANT 22UF 5% 15V 2711 | CAP TANT 22UF 5% 15V 2711 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
