Product CatalogPart Number
CX90MF-16P
Manufacturer
Hirose Electric Co LtdDescription
Interconnect Interface
Datasheet
DatasheetPackage
-
In Stock
42,322 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CX90MF-16P
CX90MF-16P
lmages are for reference only.Payment Methods
Delivery Services
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle
Quick Inquiry
CX90MF-16P
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | CX |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 (16+8 Dummy) |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 105°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 6A |
| Voltage - Rated | 48VAC/DC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

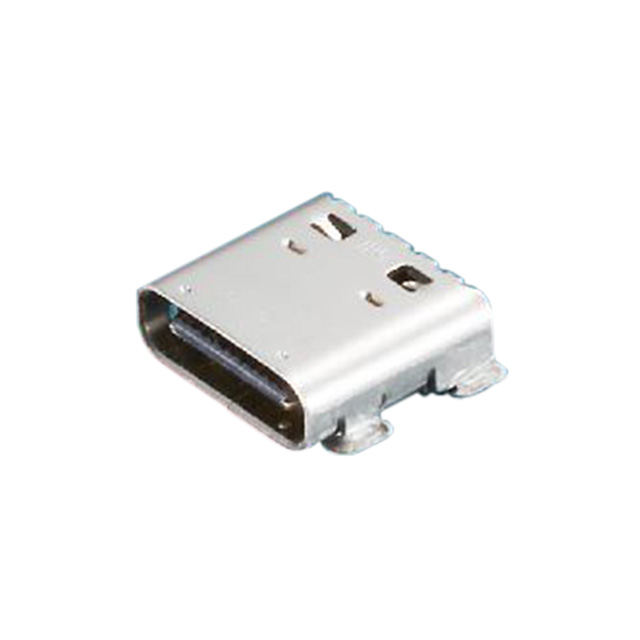

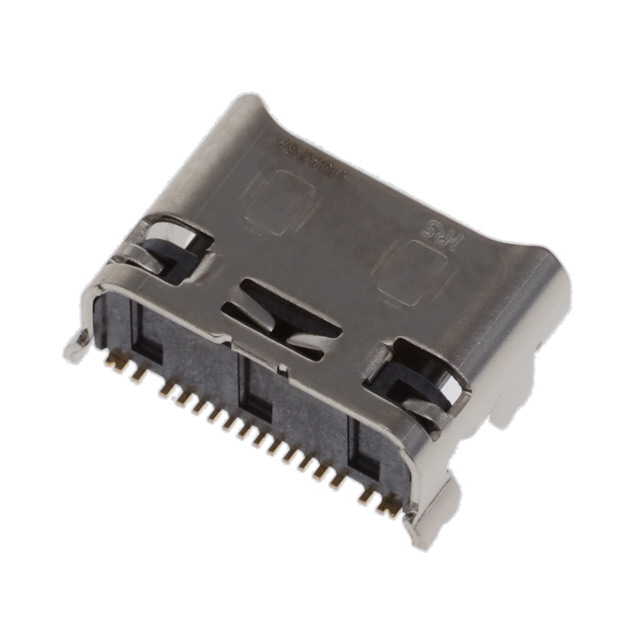

| Part Number | CX90B-16P | CX90B-16P1 | CX90B1-24P | CX90B1B-24P |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CONN RCP USB3.2 TYP C 24P SMD RA | Interconnect Interface | CONN RCP USB3.1 TYPEC 24P SMD RA | INTERFACE |
| Series | CX | CX | CX | CX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

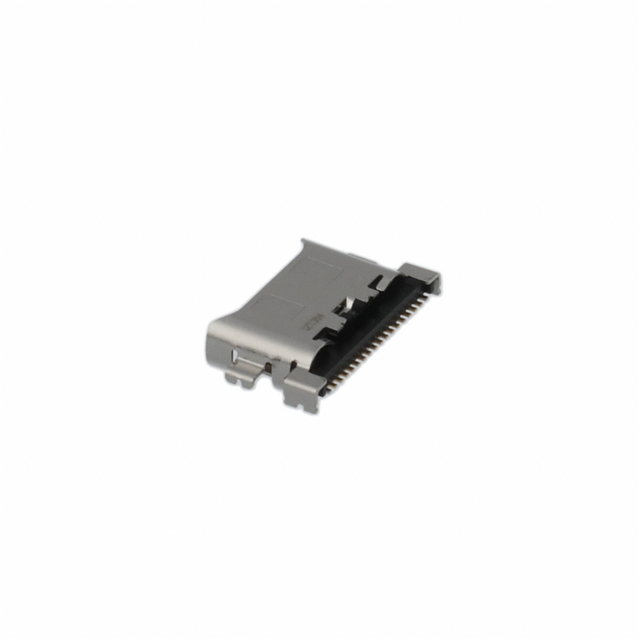

CX90M-16P
Hirose Electric Co Ltd
CX90M3-24P
Hirose Electric Co Ltd

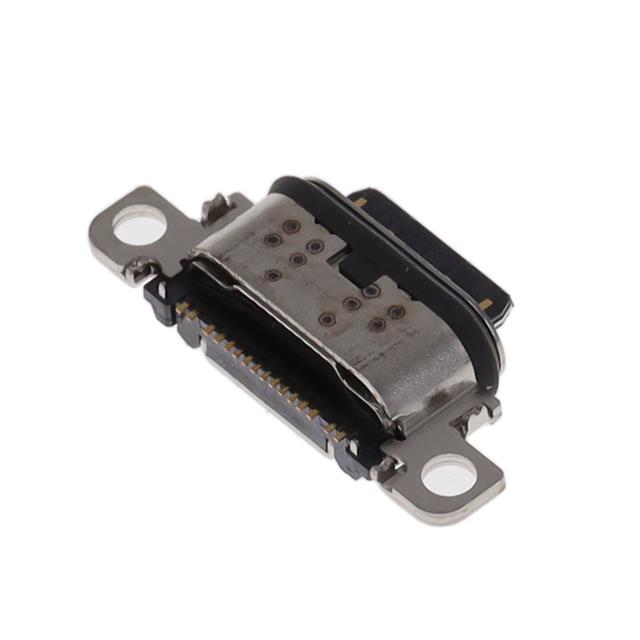

CX90MW6-16P
Hirose Electric Co Ltd
CX90MW8-16P
Hirose Electric Co Ltd
CX90MW8-16P1
Hirose Electric Co Ltd
CX90MW9-24P
Hirose Electric Co Ltd
CX90MW9-24P1
Hirose Electric Co Ltd

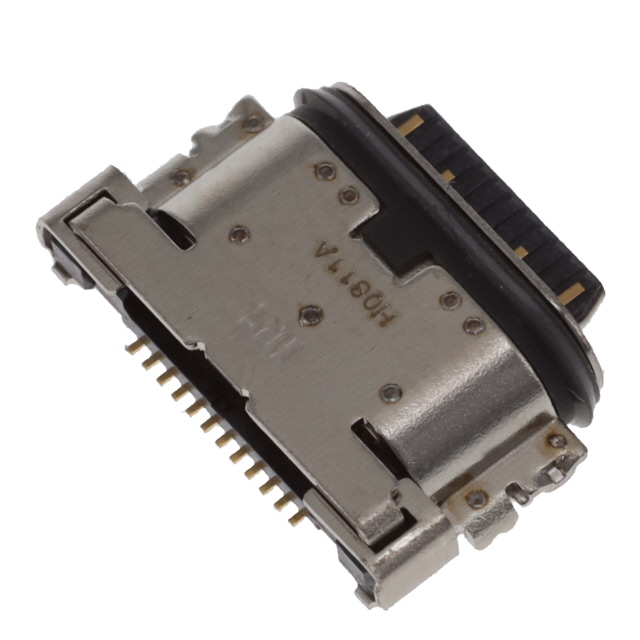

CX90MWD2G-24P
