CY8C24794-24LFXI
lmages are for reference only.CY8C24794-24LFXI
IC MCU 8BIT 16KB FLASH 56QFN
Datasheet56-VFQFN Exposed Pad
71,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
M8C PSOC™1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 56-QFN (8x8)
CY8C24794-24LFXI
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Infineon Technologies |
| Series | PSOC™1 CY8C24xxx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART, USB |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 48x14b; D/A 2x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Package / Case | 56-VFQFN Exposed Pad |
| Base Product Number | CY8C24794 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

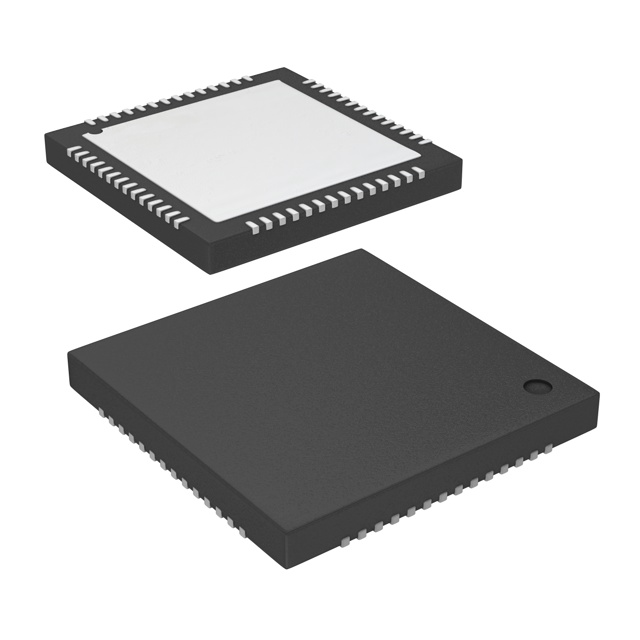

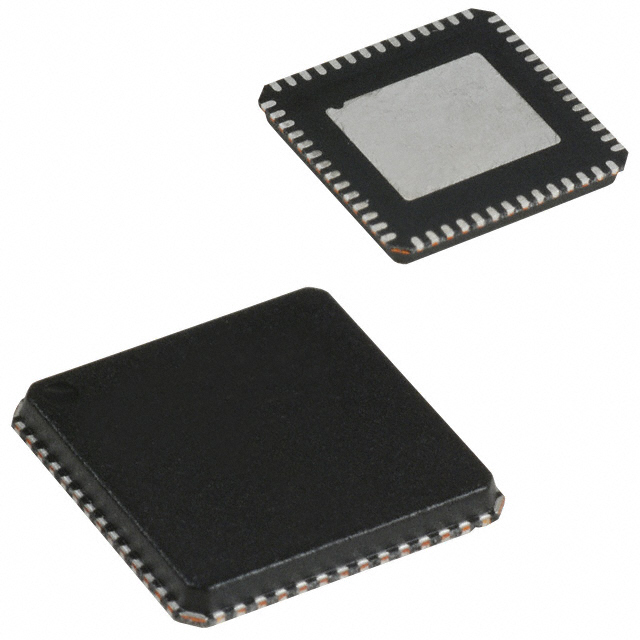

| Part Number | CY8C24794-24LFXIT | CY8C24794-24LQXI | CY8C24794-24LQXIT | CY8C24794-24LTXI |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 16KB FLASH 56QFN | IC MCU 8BIT 16KB FLASH 56QFN | IC MCU 8BIT 16KB FLASH 56QFN | IC MCU 8BIT 16KB FLASH 56QFN |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tray |
