CY91F525KSDPMC1-GSE2
lmages are for reference only.CY91F525KSDPMC1-GSE2
IC MCU 32BIT 832KB FLASH 144LQFP
Datasheet144-LQFP
14,352 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FR81S FR CY91520 Microcontroller IC 32-Bit 80MHz 832KB (832K x 8) FLASH 144-LQFP (16x16)
CY91F525KSDPMC1-GSE2
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Infineon Technologies |
| Series | FR CY91520 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | FR81S |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 120 |
| Program Memory Size | 832KB (832K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 104K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 48x12b SAR; D/A 2x8b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (16x16) |
| Package / Case | 144-LQFP |
| Base Product Number | CY91F525 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

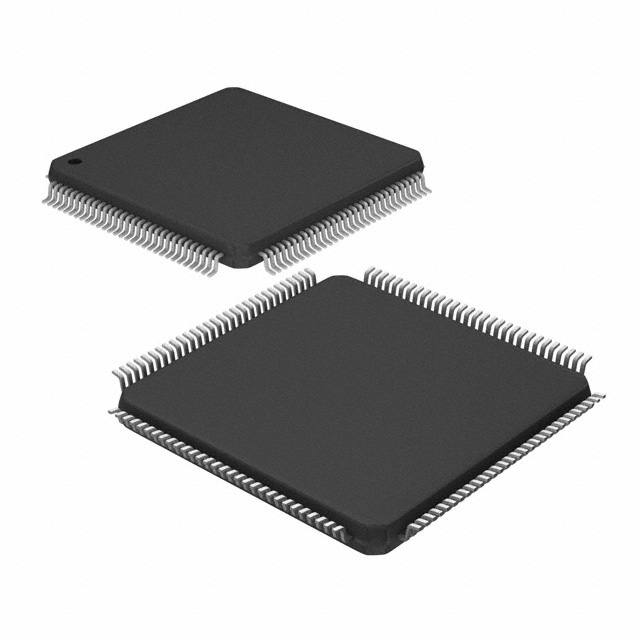

| Part Number | CY91F047PMC-GS-UJE1 | CY91F057PMC-GSE1 | CY91F060BSPMC-GSE1 | CY91F061BSPMC1-GSE1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 144LQFP | IC MCU 120LQFP | ICU MCU FLASH | IC MCU FLASH MICOM-0.09 144LQFN |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tray | Tray | Tray | Tray |
