CZRA4740-G

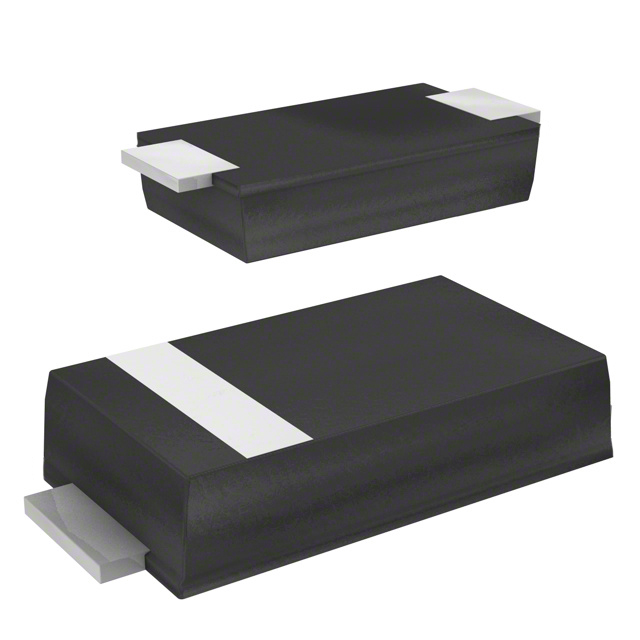

lmages are for reference only.CZRA4740-G
DIODE ZENER 10V 1W DO214AC
DatasheetDO-214AC, SMA Flat Leads
25,843 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 10 V 1 W ±5% Surface Mount DO-214AC (SMA)
CZRA4740-G
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 10 V |
| Tolerance | ±5% |
| Power - Max | 1 W |
| Impedance (Max) (Zzt) | 7 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 7.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature | -55°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA Flat Leads |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | CZRA4740 |
| Product Attribute |  |
 |
 |
 |
| Part Number | CZRA4740-HF | CZRA4741-G | CZRA4741-HF | CZRA4742-G |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 10V 1W DO214AC | DIODE ZENER 11V 1W DO214AC | DIODE ZENER 11V 1W DO214AC | DIODE ZENER 12V 1W DO214AC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
