D12V0S1U2LP1608-7
lmages are for reference only.D12V0S1U2LP1608-7
TVS DIODE 12VWM 22VC U-DFN1608-2
Datasheet2-UFDFN
35,146 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22V Clamp 55A Ipp Tvs Diode Surface Mount U-DFN1608-2
D12V0S1U2LP1608-7
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13V |
| Voltage - Clamping (Max) @ Ipp | 22V |
| Current - Peak Pulse (10/1000µs) | 55A |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 380pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-UFDFN |
| Supplier Device Package | U-DFN1608-2 |
| Base Product Number | D12V0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

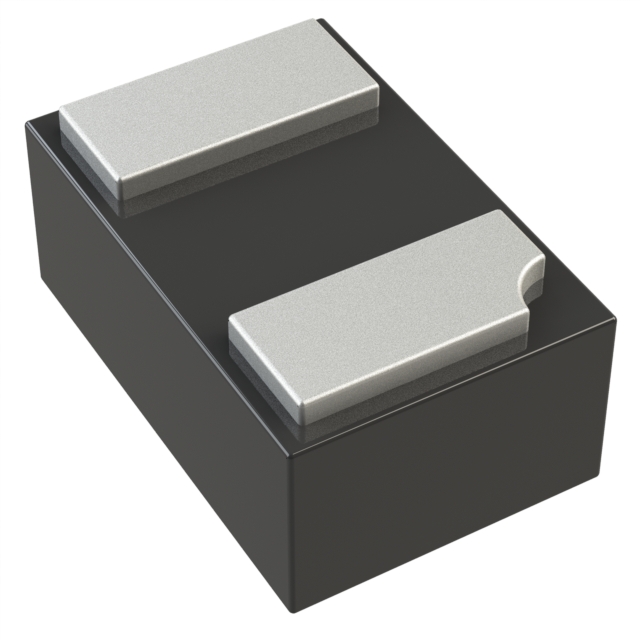

| Part Number | D12V0S1U2LP1610-7 | D12V0S1U2LP1610Q-7 | D12V0S1U3LP20-7 | D10V0H1U2LP-7B |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURGE PROTECTION PP U-DFN1610-2 | SURGE PROTECTION PP U-DFN1610-2 | TVS DIODE 12VWM 23.7VC 3DFN | TVS DIODE 10VWM 20VC DFN1006-2 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
