D15V0X1B2LP-7B
lmages are for reference only.D15V0X1B2LP-7B
TVS DIODE 15VWM 30VC DFN1006-2
Datasheet0402 (1006 Metric)
87,607 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount X1-DFN1006-2
D15V0X1B2LP-7B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Voltage - Breakdown (Min) | 16.5V |
| Voltage - Clamping (Max) @ Ipp | 30V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.55pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 |
| Base Product Number | D15V0 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

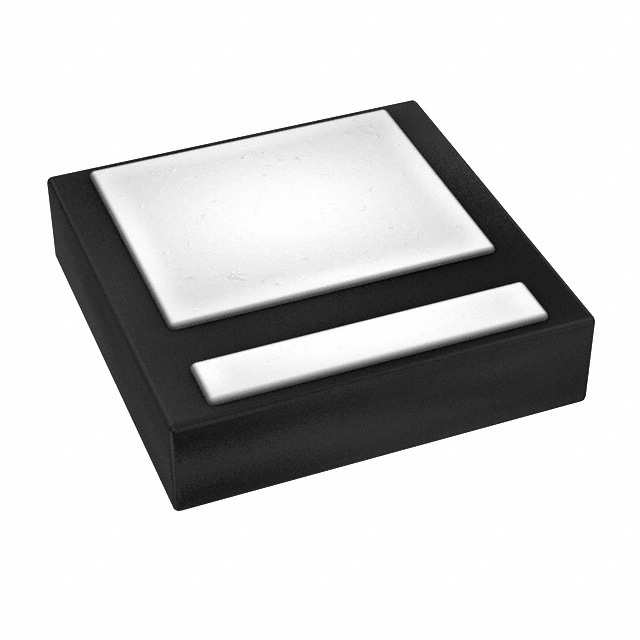

| Part Number | D15V0X1B2LP4Q-7B | D15V0X1B2LPQ-7B | D15V0H1U2LP-7B | D15V0H1U2LP16-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DATALINE PROTECTION PP X2-DFN100 | DATALINE PROTECTION PP X1-DFN100 | TVS DIODE 15VWM 27VC DFN1006-2 | TVS DIODE 15VWM 25VC U-DFN1616-2 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
