D1MPAC2512QR034FA-T4
lmages are for reference only.D1MPAC2512QR034FA-T4
RES 0.034 OHM 1% 3W 2512
DatasheetWide 2512 (6432 Metric), 1225
12,443 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
34 mOhms ±1% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Anti-Sulfur, Current Sense, Flame Retardant Coating, Moisture Resistant, Safety Metal Element
D1MPAC2512QR034FA-T4
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Thin Film Technology Corp. |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Mfr | Thin Film Technology Corp. |
| Series | D1MPA |
| Resistance | 34 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Current Sense, Flame Retardant Coating, Moisture Resistant, Safety |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

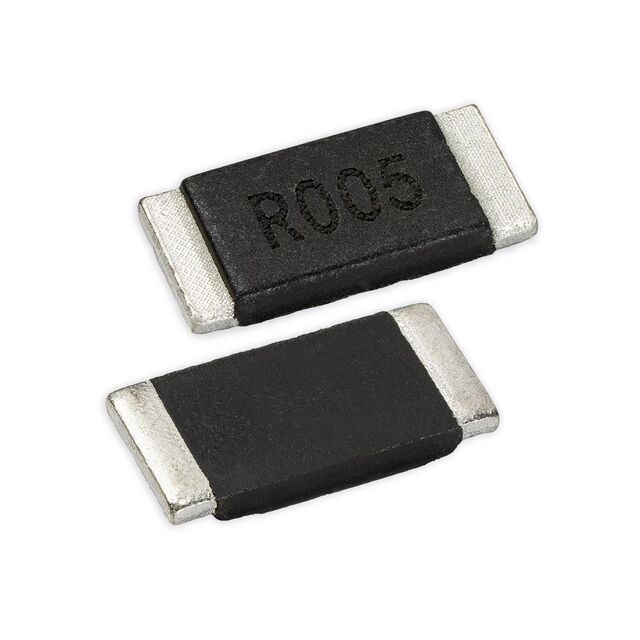

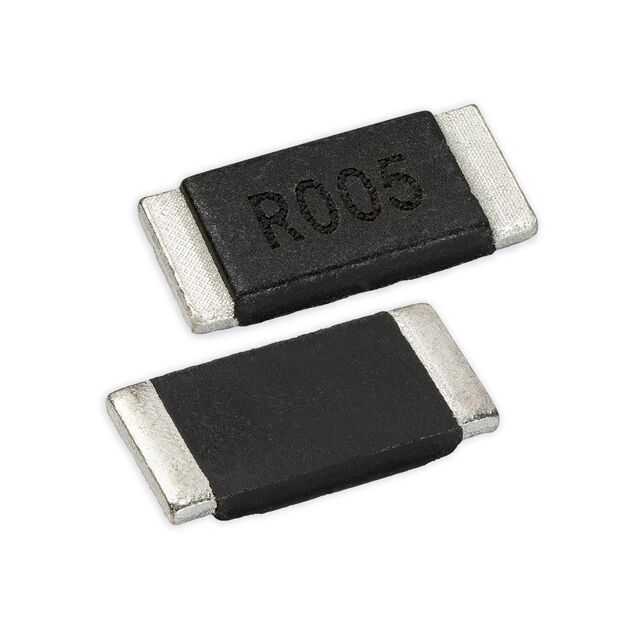

| Part Number | D1MPAC2512QR030FA-T4 | D1MPAC2512QR033FA-T4 | D1MPAC2512QR036FA-T4 | D1MPAC2512QR039FA-T4 |
| Manufacturer | Thin Film Technology Corp. | Thin Film Technology Corp. | Thin Film Technology Corp. | Thin Film Technology Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | RES 0.03 OHM 1% 3W 2512 | RES 0.033 OHM 1% 3W 2512 | RES 0.036 OHM 1% 3W 2512 | RES 0.039 OHM 1% 3W 2512 |
| Series | Thin Film Technology Corp. | Thin Film Technology Corp. | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
